Laser Tube

AQ LASER provide various well-known brand laser tubes, including various power ranges. Tube’s warranty: The power is less than 80W, 4 months. Power 80W and above, 12 months.


Availability:



Inquire Add to Basket PDF Export

Product Description

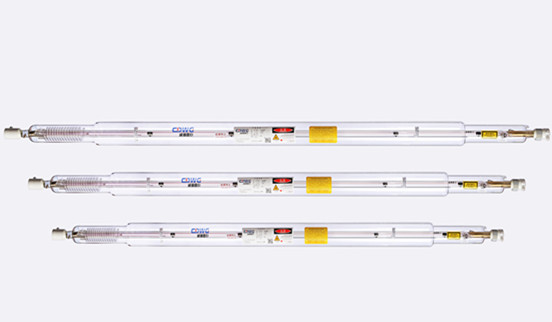

CDWG Laser tube

EFR Laser tube

Yongli Laser tube

Reci Laser tube

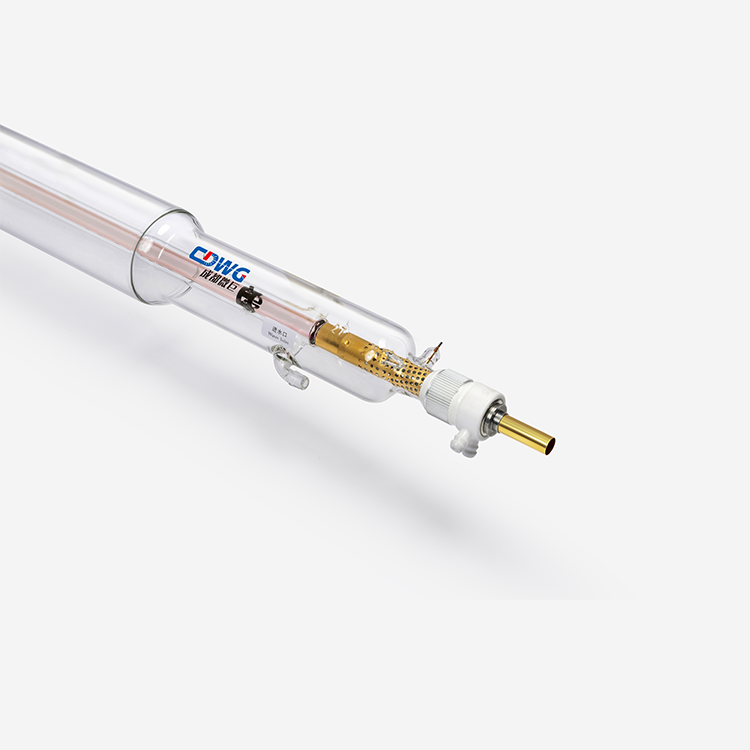

CDWG Laser tube

Product advantages: small light spot, good cutting effect.

The long-life use current should be controlled at 28mA, and the maximum working current should not exceed 30mA.

CDWG

Model	Length(mm)	Outer Diameter(mm)	Rated Power(W)	Max. Power(W)	Warranty (month)	Remarks
S7	1600±20	80/60	120	135	12	With 120W/130W power supply
F7	1650±30	80/60	130	155	12	With 150W power supply
H7	1750±30	80/60	140	170	12	With 150W power supply
W7	1850±20	80/60	150	180	12	With 150W power supply
U7	1850±30	100/80/60	160	180	12	With 200W power supply
K7	2050±30	100/80/60	180	200	12	With 200W power supply

CO2 Laser Tube Laser accessories Laser Power
