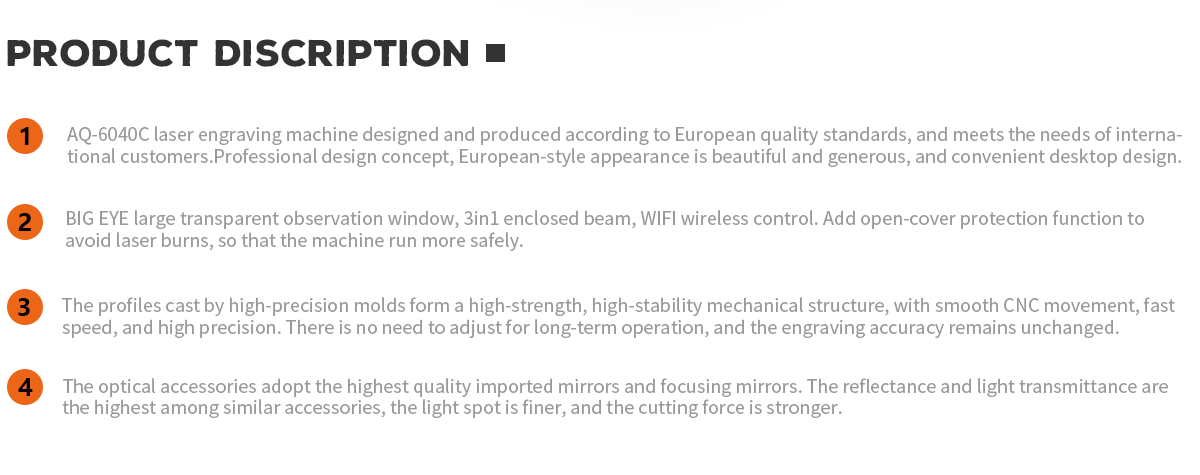

Product Description

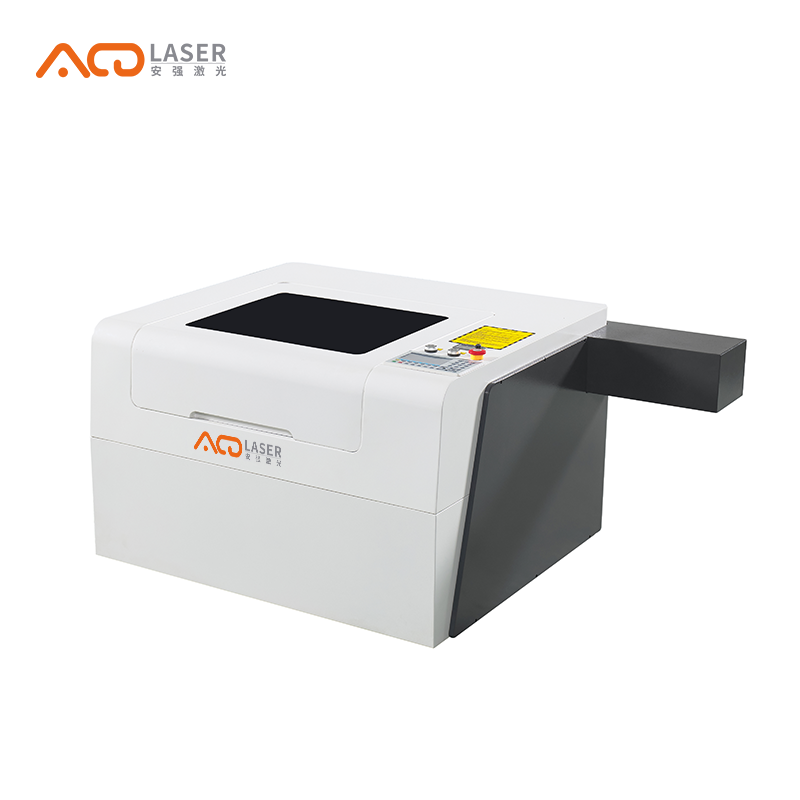

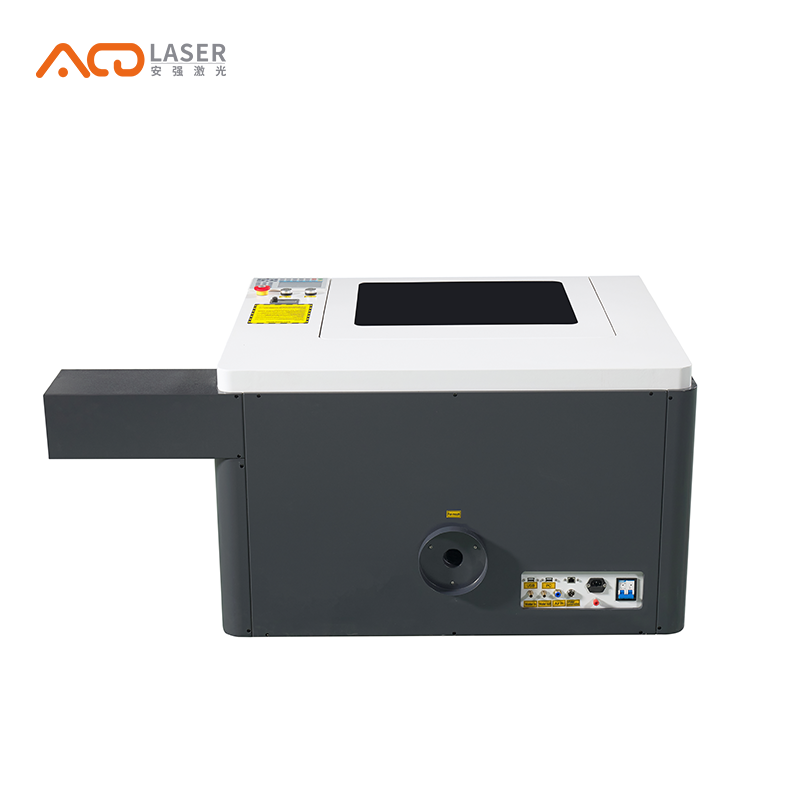

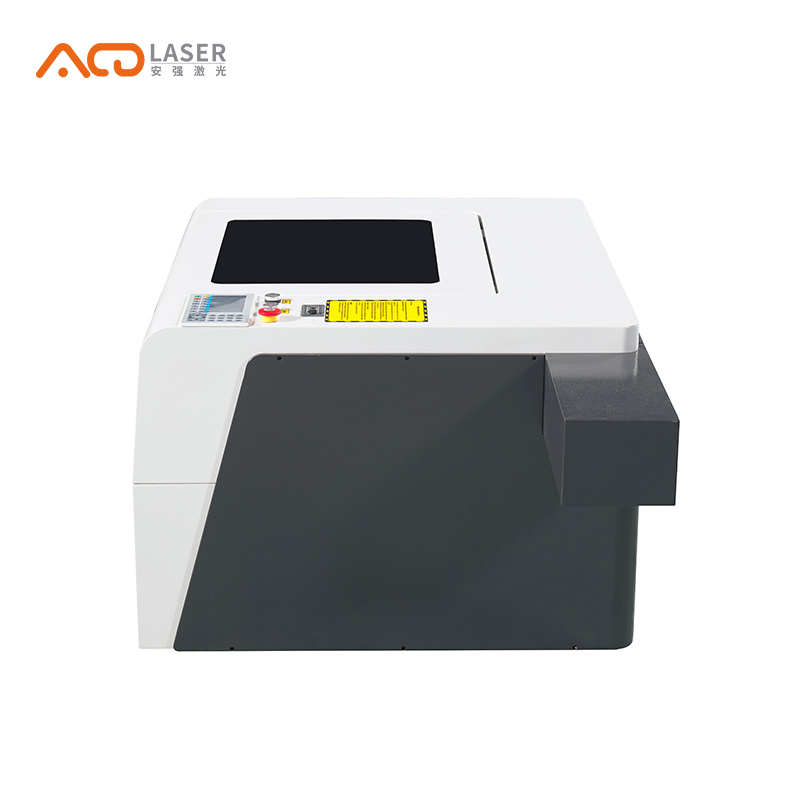

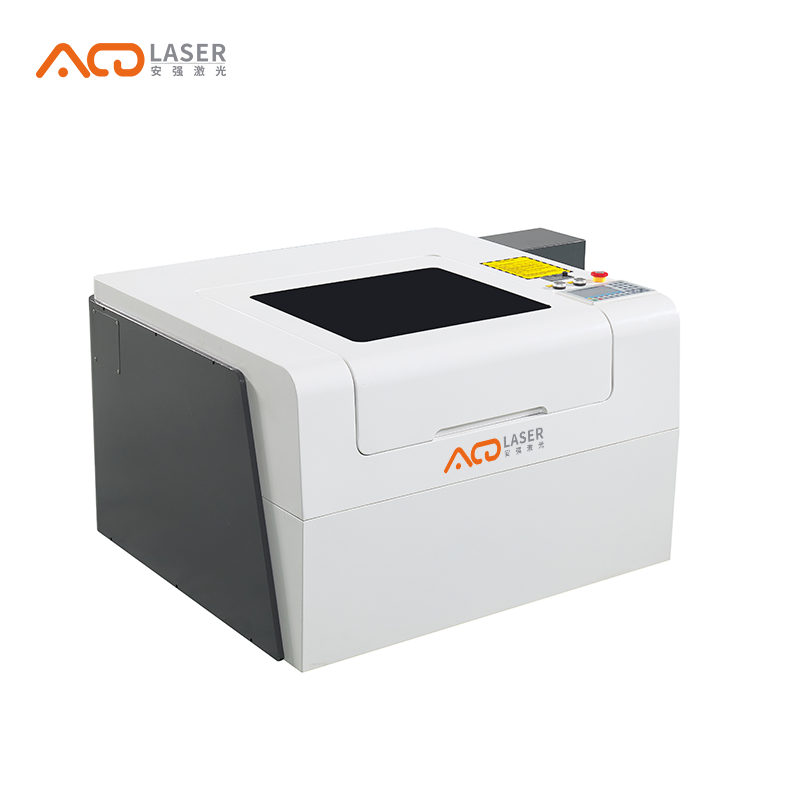

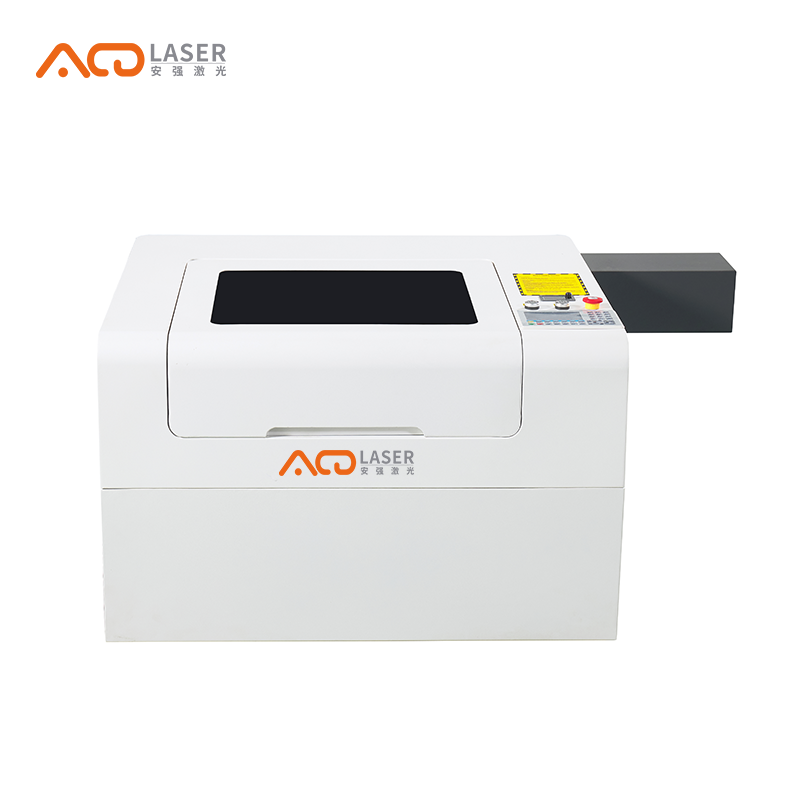

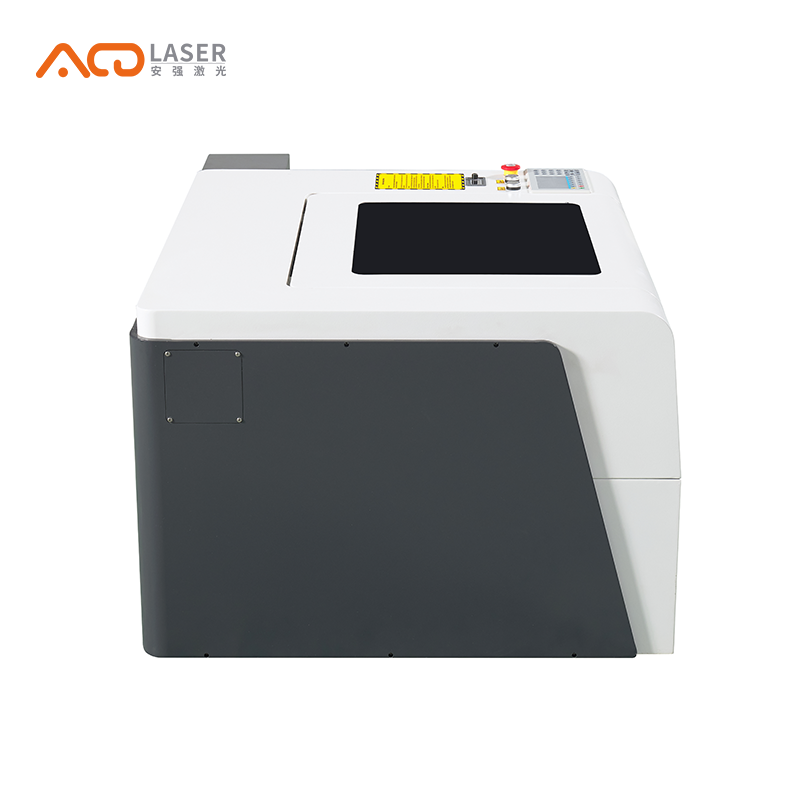

The 6040C laser engraving and cutting machines from AQ Laser combine our top-of-the-line technology to help every user working in safety with high speed.

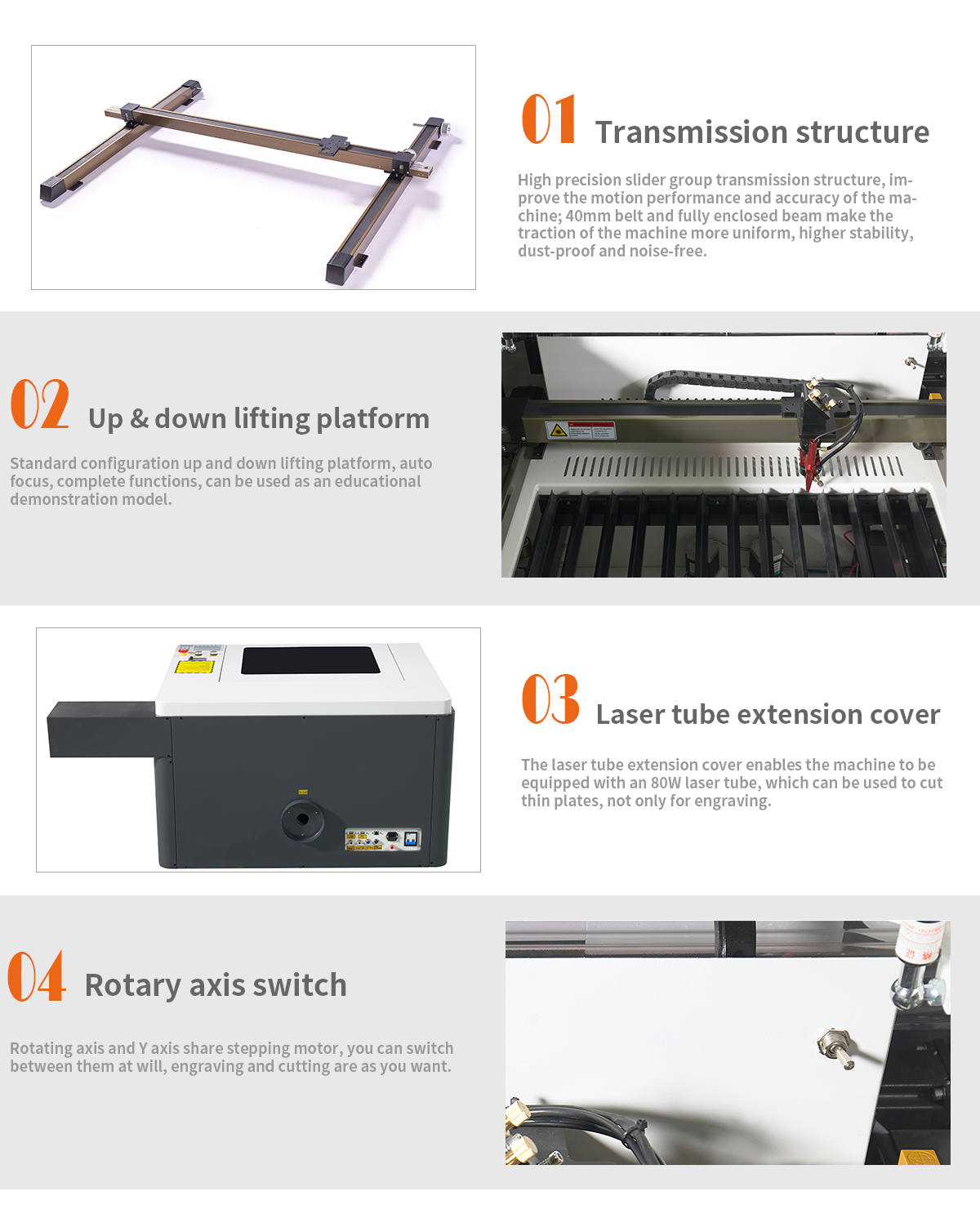

◆Transmission structure: high-precision sliding block transmission, 40mm belt, more uniform traction, higher precision, fully enclosed beam, no noise, dust-proof, and low vibration.
◆Use a large acrylic cover, easy to observe working conditions, and more beautiful.
◆Add open-cover protection function to avoid laser burns, so that the machine run more safely.
◆After years of verification, this model is stable and efficient, with low failure rate.
What’s included of machine auxiliary accessories
◆CW3000 industrial water chiller
◆550W extraction fan
◆160W air pump
◆Toolbox

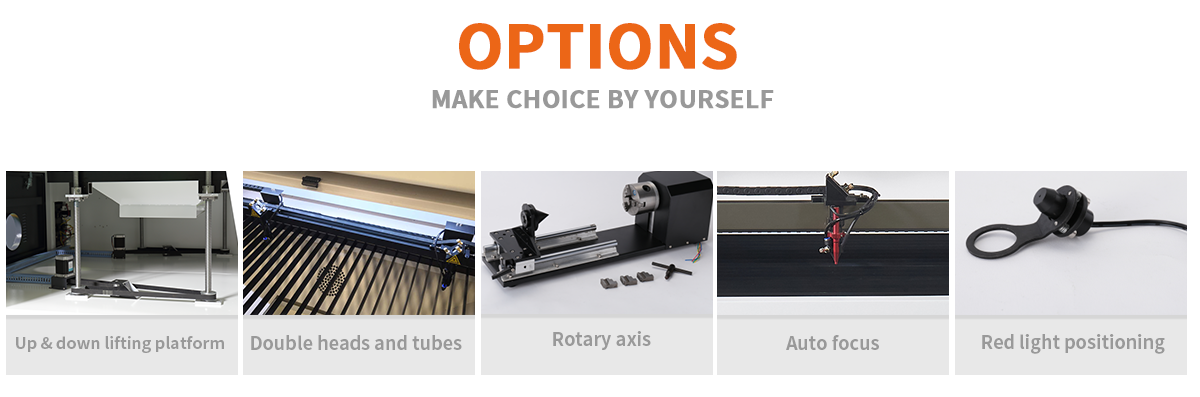

To meet your different cutting and engraving demands, we have some options for your choice to improve your machine.
Technical Parameters
Engraving / Working Area | 600x400mm |
Laser Source | Sealed CO2 gas filled glass tube,standard 40w with stringintly tested. Average lifespan is 2000-4000 working hours. |
Electrical Requirements | Standard 220v AC 50Hz Single Phase, customized based on your local voltage is available |
Compatible Software | CORTLDRAW、PHOTOSHOP、AUTOCAD，Compatible with Windows, Mac, and Linux |
Motorized Table | Standard solid metal blade knife blade bed, or removable honeycomb. Both are available. |
Laser Heads | Professional adjustment special head |
Exclusive transmission | High-precision sliding block transmission |
Advanced fireproof | Fireproof protection system |
Motion Control | LeadShine Stepper Motors with engraving speeds up to 1,000mm/s |
Belts | Advanced wide 3M precision drive belts. |
Water Chiller | CW3000 |
Air compressor | 160w air assist pump |
Ventilation | 550W Extraction fan |
Warning Light | Visible red / green light on machine so you know when job is finished |
Resolution | Fully-flexible and user-controlled from 75 – 1200 dpi |
| Speed and Power | 120 IPS (3.05m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode. |
| Working precision | Location precision <0.01mm Minimum character size 1.5mm x 1.5mm Typical design software Adobe Illustrator, AutoCAD, Corel Draw, 2D design Preferred file types .dxf, .plt |

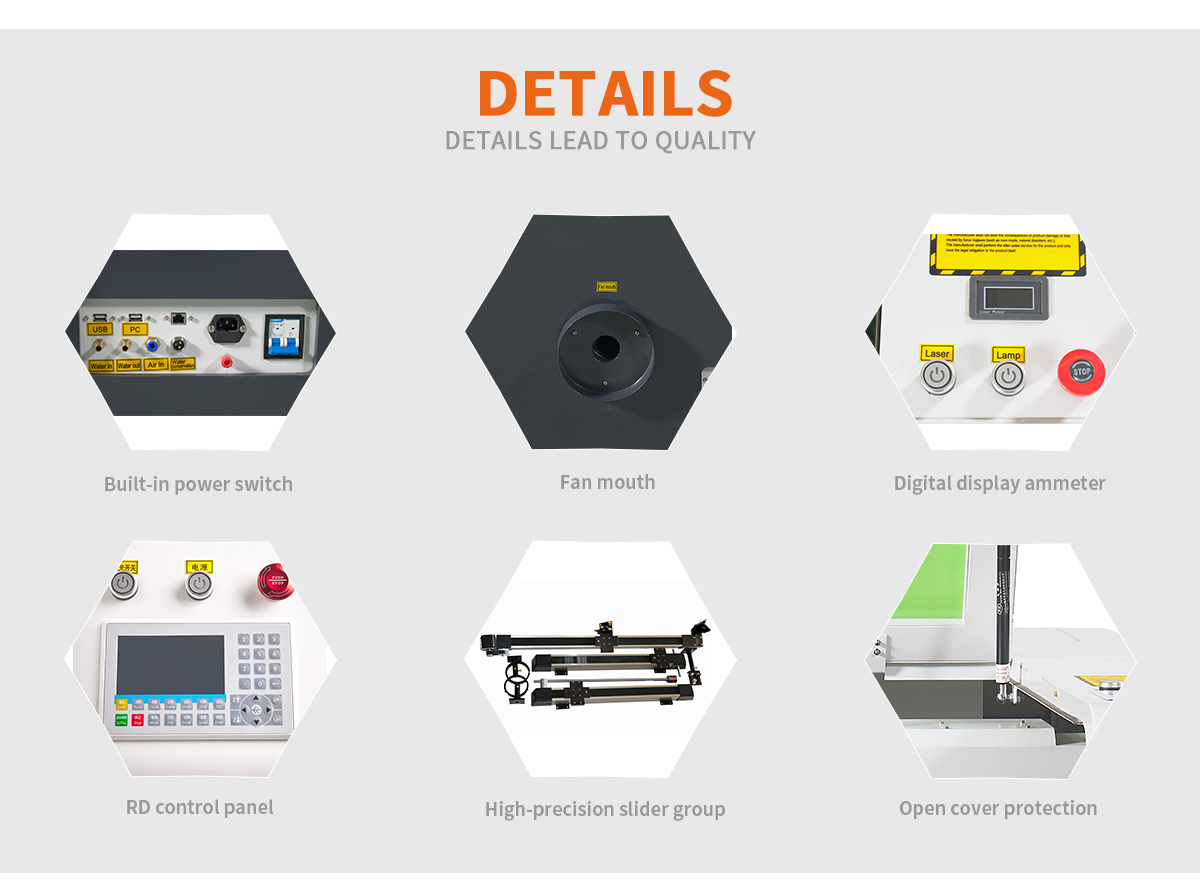

Safety device | Open cover protection, fire protection, no-water protection, heat alarm system, separately keyed main power switch |
| Machine Size | Advanced split structure to save more cost in shipping. Complete size 1.02X0.84X0.64m, package size 1.1X1X1m. |
| Weight | 150kg |
| Warranty | 12 months onsite excluding consumables (laser tube and optics). |
Application

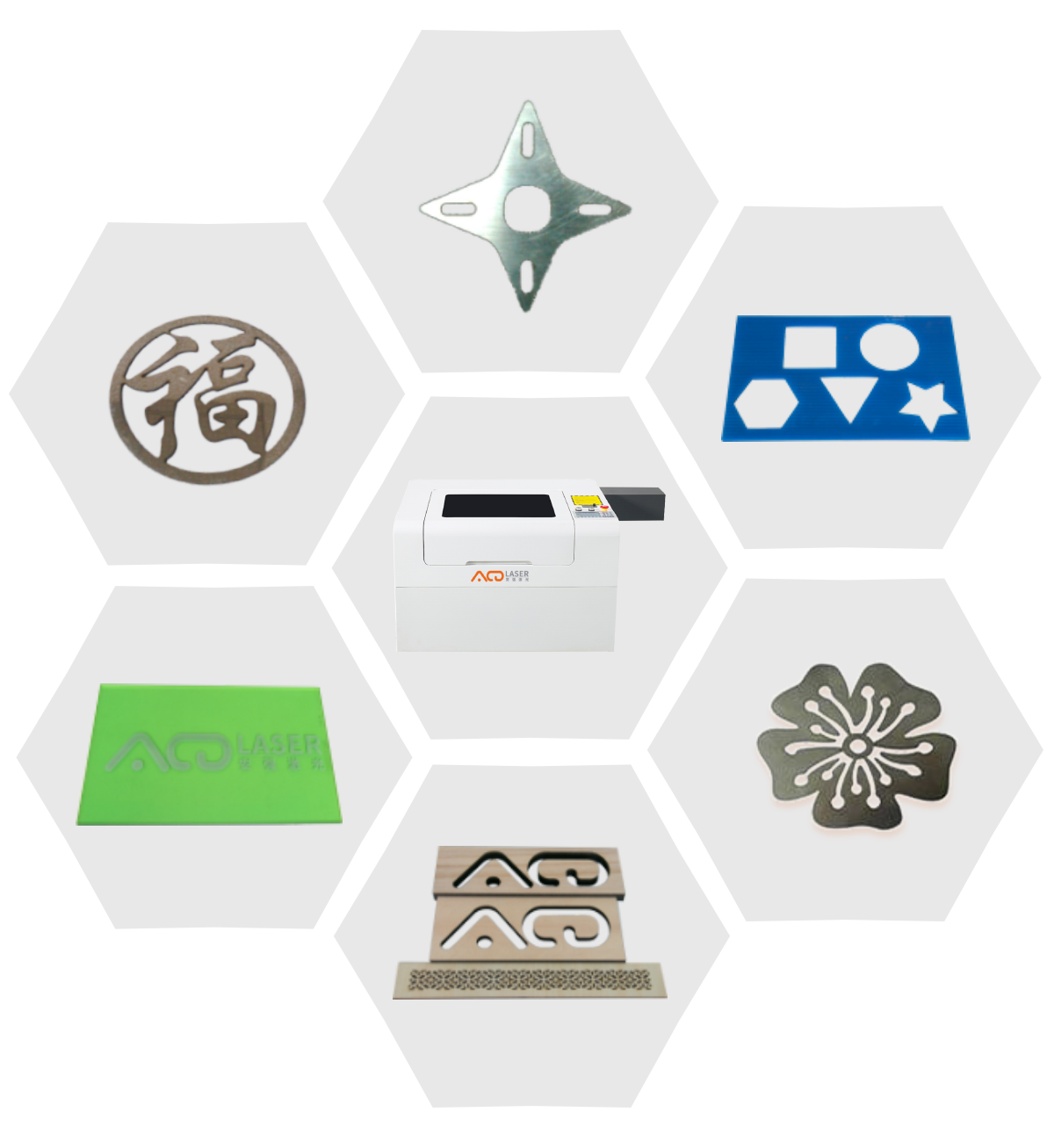

Products made by AQ Laser
Below are just a few examples of products that have been made with AQ Laser machines.
Engrave | Cut | |
Wood | √ | √ |
Acrylic | √ | √ |
Fabric | √ | √ |
Glass | x | x |
Coated Metals | x | x |
Ceramic | x | x |
Cloth | √ | √ |
Leather | √ | √ |
Marble | x | x |
Matte Board | √ | √ |
Paper | √ | √ |
Mylar | √ | √ |
Pressboard | √ | √ |
Rubber | √ | √ |
Wood Veneer | √ | √ |
Fiberglass | x | x |
Painted Metals | x | x |
Tile | x | x |
Plastic | √ | √ |
Cork | √ | √ |
Stainless Steel | √ | √ |
The acrylic CO2 Laser Cutting Machines wood furniture laser engraving machine 1390 9060 1610 For Nonmetal engraver is affordable in different working area. It can meet different needs of users which is used to cut and engrave metal and non metal materials like mdf/acrylic/cloth/paper/aluminum etc. and various processing honeycomb table or auto-feeder table or up down lifting table or knife table is made according to your materials. With the protective cover of the co2 laser cutting machine, the processing production is more environmental friendly.
Delivery Process
About AQ Laser
AQ Laser offer a rapidly increasing range of designed and manufactured laser machines to suit your needs, Whether you're an individual, startup or a large corporation, we offer affordable laser machines to suit all budgets. Laser systems are becoming a vital part of a modern workshop or production facility. Start your journey into the world of co2 laser machines by working with the right company. Please select from the below categories for more information, or contact our friendly sales team to speak to us for advice on the best machine for you.
