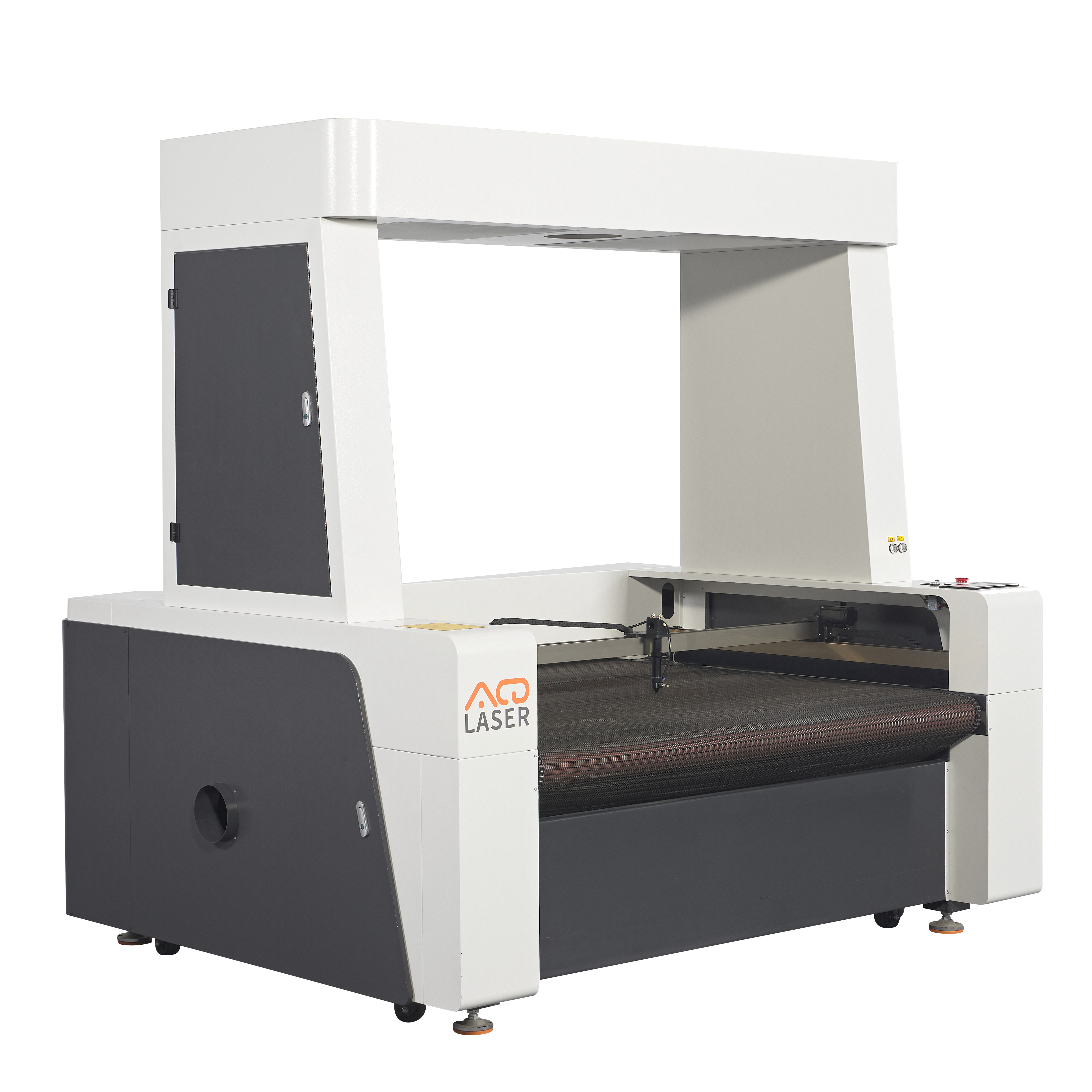

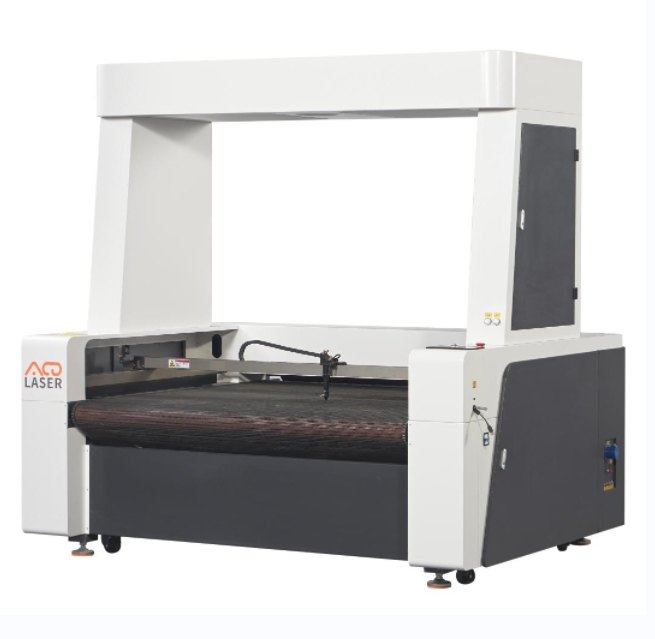

AQ-1610F-CCD laser cutting machine

The AQ-1610F-CCD laser cutting machine is a stable and durable model that has been verified by the market for many years. Intelligent, Automatic and Powerful functionality, 80W / 100W / 130W / 150W Intelligent fabric cutting solution.
Availability:

PDF Export

sharethis sharing button

Product Description


1E8A2494

Intelligent, Automatic and Powerful functionality

80W / 100W / 130W / 150W Intelligent fabric cutting solution


Processing industry and materials

Leather, clothing and textile processing industries: complex characters and figures are carved, cut, carved and hollowed out on leather, synthetic leather, artificial leather, cloth and fur.  Cutting, carving underwear, household ornaments, gloves, handbags, shoes, hats, toys and car flowers industries, surpassing fashion in the garment, demonstrated their individuality.


Advantages

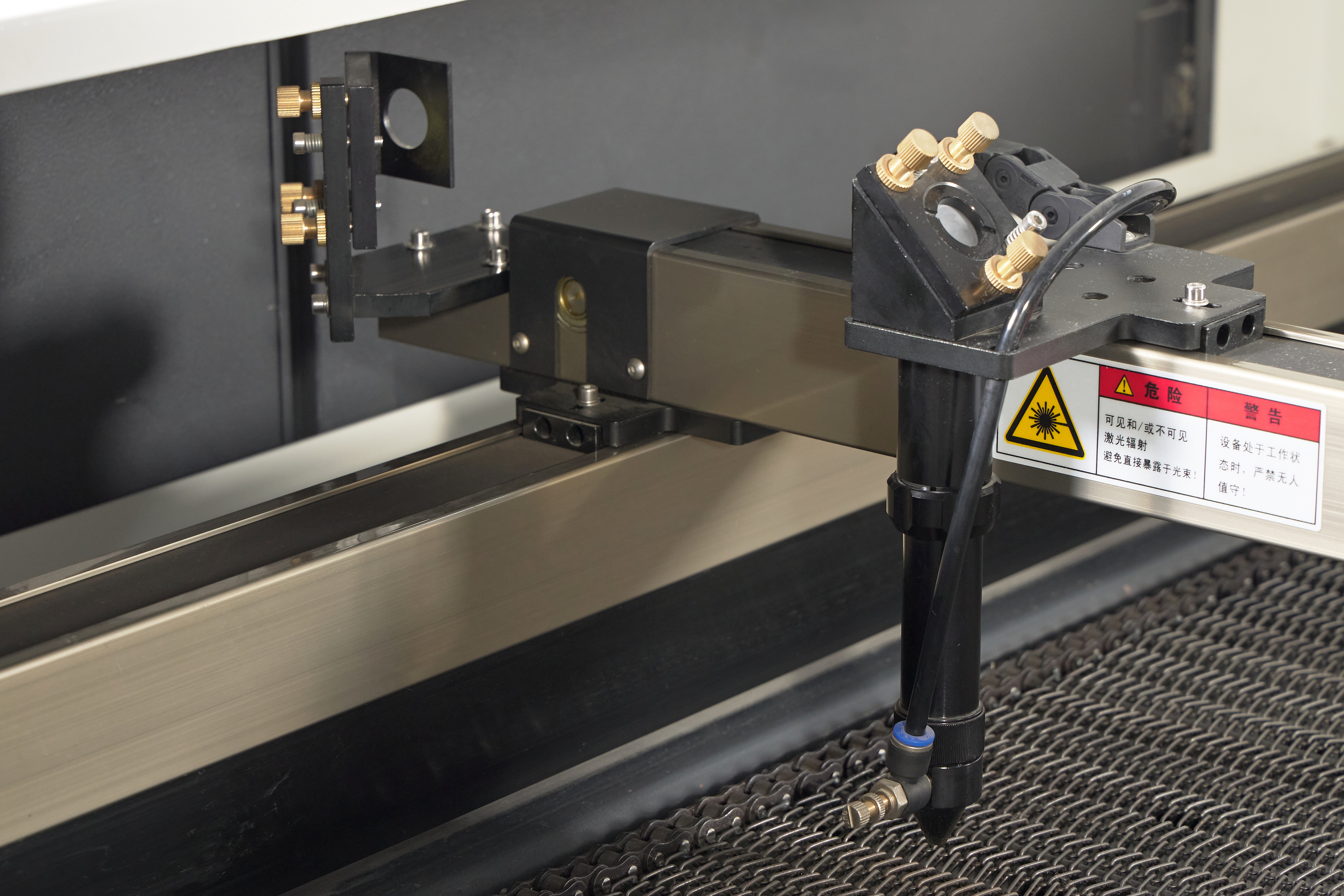

Transmission structure

1E8A2465

High precision slider group transmission structure, improve the motion performance and accuracy of the machine; 40mm belt and fully enclosed beam make the traction of the machine more uniform, higher stability, dust-proof and noise-free.

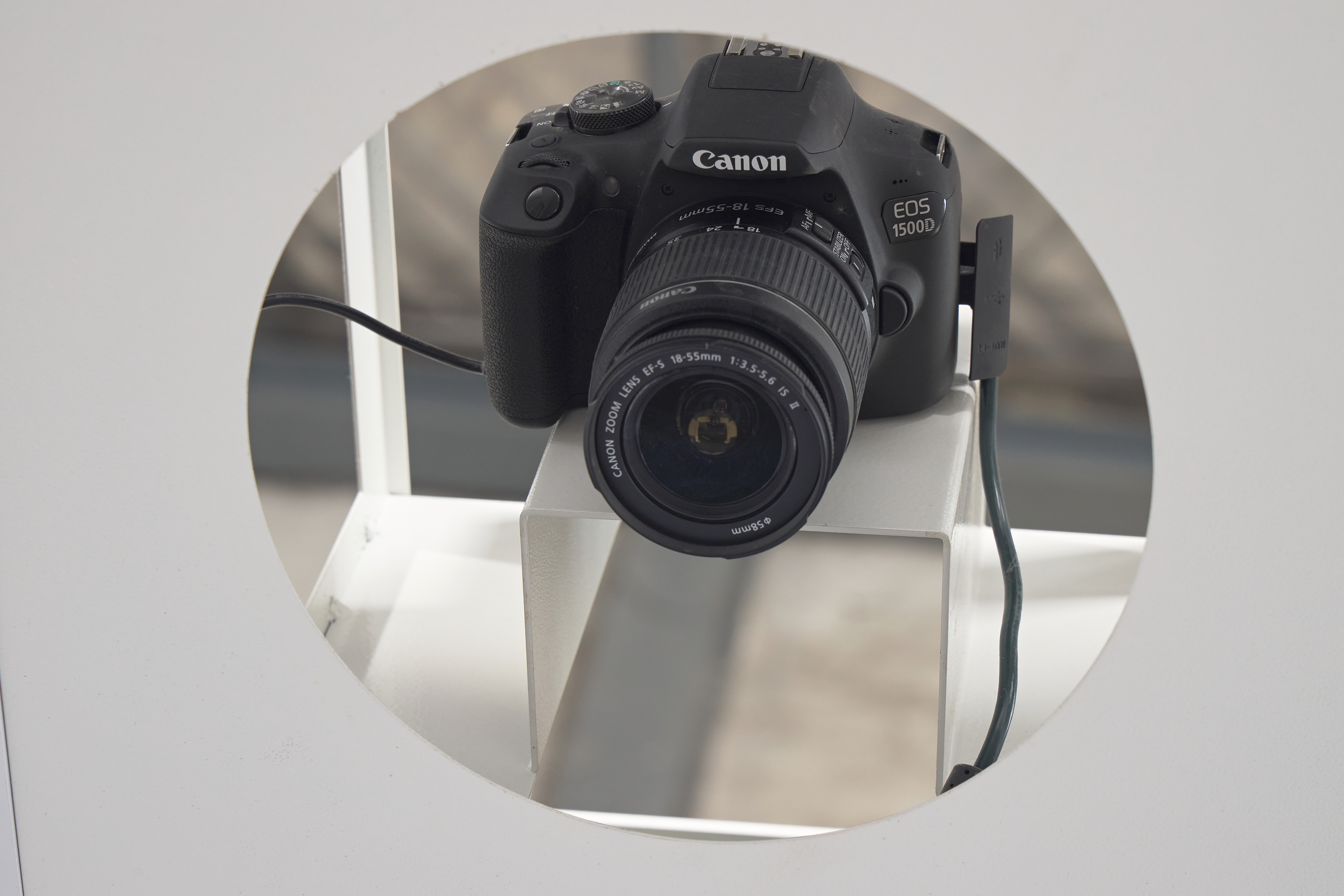

Full format CCD camera

1E8A2517

Intelligent extraction of graphic contours and cutting, working ability and efficiency is extremely high.

Full - automatic feeding and receiving

1E8A2507

Full - automatic feeding and receiving saves time and improves work efficiency. The format can be customized according to the needs of users.

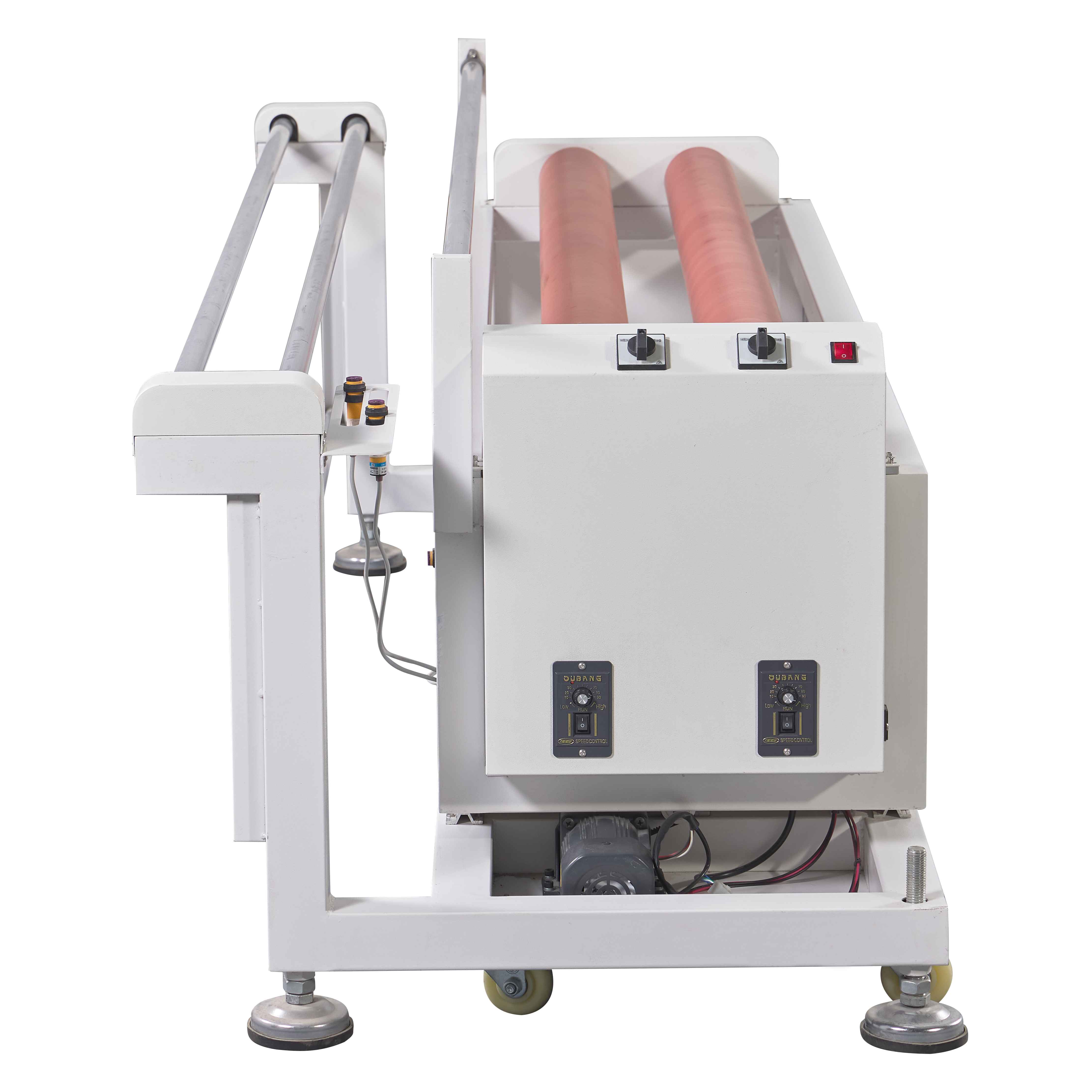

Automatic deviation correction

1E8A2524

An optional automatic correction loader corrects the feed via a light-sensitive probe, making coil cutting easier and more efficient.



What’s included of machine auxiliary accessories


◆CW5000 industrial water chiller

◆550W extraction fan

◆150W air pump

◆Toolbox




Technical Parameters

Engraving / Working Area1600x1000mm
Laser Source

Sealed CO2 gas filled glass tube,standard 130w with stringintly tested.

Average lifespan is 2000-4000 working hours.

Electrical RequirementsStandard 220v AC 50Hz Single Phase, customized based on your local voltage is available
Compatible SoftwareCORTLDRAW、PHOTOSHOP、AUTOCAD,Compatible with Windows, Mac, and Linux
Motorized TableAuto-feeding
Laser HeadsProfessional adjustment special head
Exclusive transmission40mm belt transmission
Motion ControlLeadShine Stepper Motors with engraving speeds up to 1,000mm/s
BeltsAdvanced wide 3M precision drive belts.
Water ChillerCW5000
Air compressor160w air acompressor
Ventilation550W Extraction fan
Warning LightVisible red / green light on machine so you know when job is finished
ResolutionFully-flexible and user-controlled from 75 – 1200 dpi
Speed and Power120 IPS (3.05m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode.
Working precisionLocation precision   <0.01mm

Minimum character size    1.5mm x 1.5mm

Typical design software    Adobe Illustrator,  AutoCAD, Corel Draw, 2D design

Preferred file types    .dxf, .plt

Machine SizeAdvanced split structure to save more cost in shipping.

Complete size 2370*1960*2200mm

, package size 2450*2040*1400mm.

Weight550kg
Warranty12 months onsite excluding consumables (laser tube and optics).


Application

Products made by AQ Laser


Below are just a few examples of products that have been made with AQ Laser machines.

We can also make samples according to customer needs.

样品1图片2


Engrave Cut

Wood

Acrylic

Fabric

Glass

x

x

Coated Metals

x

x

Ceramic

x

x

Cloth

Leather

Marble

x

x

Matte Board

Paper

Mylar

Pressboard

Rubber

Wood Veneer

Fiberglass

x

x

Painted Metals

x

x

Tile

x

x

Plastic

Cork

Stainless Steel
