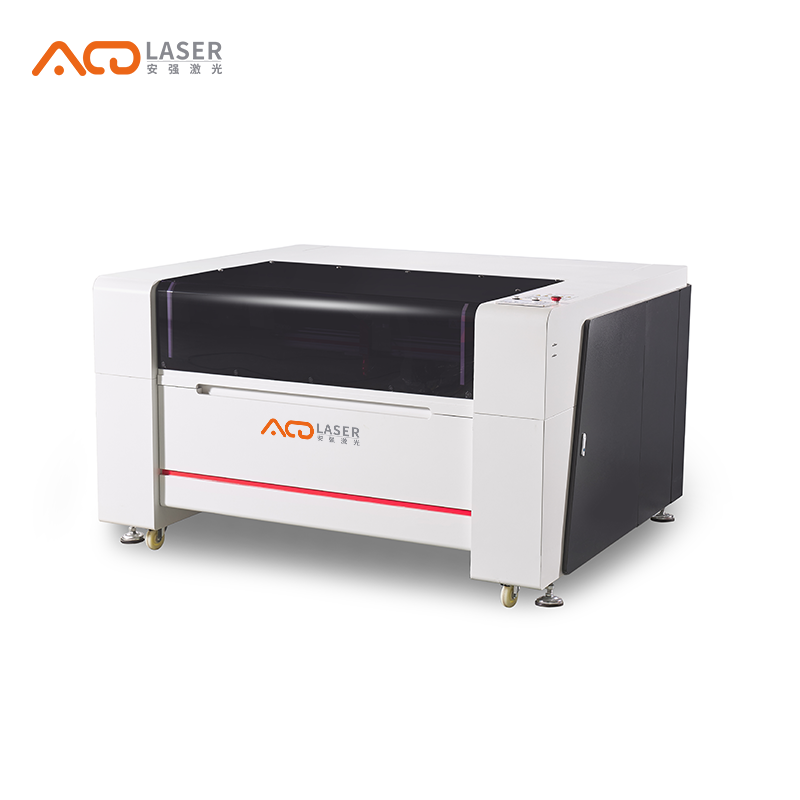

AQ-1390S 240W laser cutting machine

AQ-1390S laser cutting machine is a cutting machine developed to meet customers' high-precision cutting needs. High Precision and High Efficiency. 100W / 150W / 240W / 350W non-metal high-precision cutting solution.
Availability:

PDF Export

sharethis sharing button

Product Description

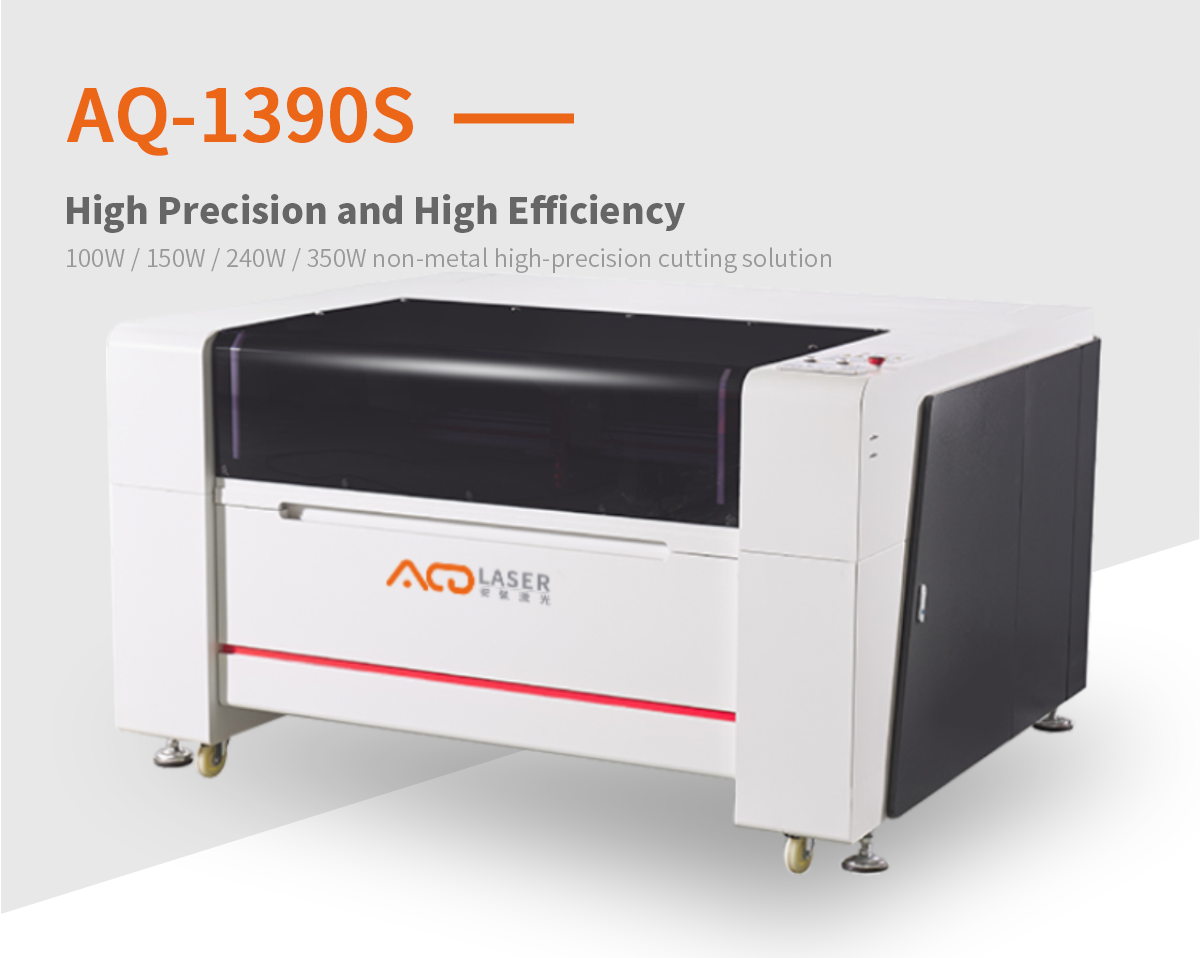

1390S_01


The 1390S laser cutting machines from AQ Laser combine our top-of-the-line technology to help every user working in safety with high precision.

◆Transmission structure: high-precision screw modules transmission, ball screw, driven by servo motor, higher precision, fully enclosed beam, no noise, dust-proof, and low vibration, top mechannical and cutting precision.

◆Use a large acrylic cover, easy to observe working conditions, and more beautiful.

◆Add open-cover protection function to avoid laser burns, so that the machine run more safely.



1390S_02

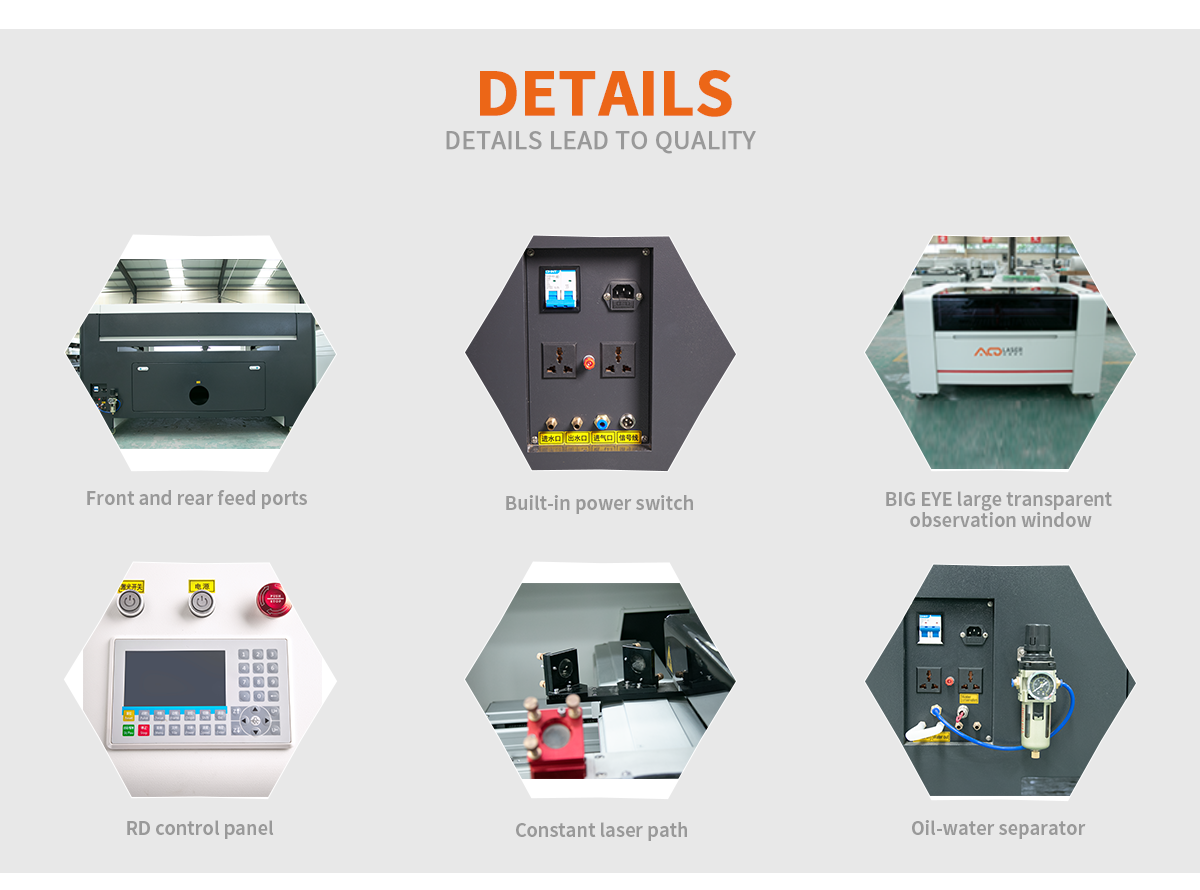

1390S_03

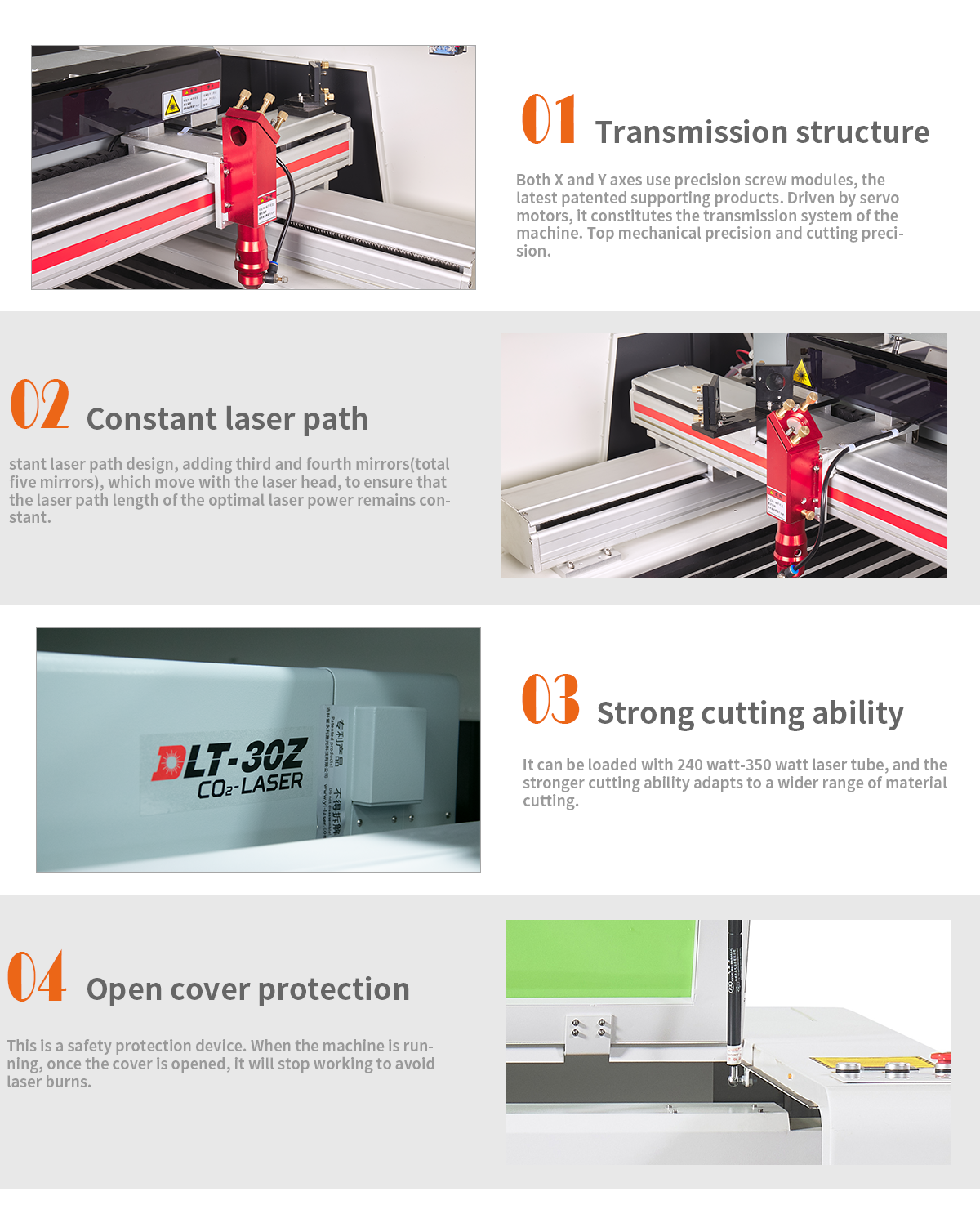

1390S_04

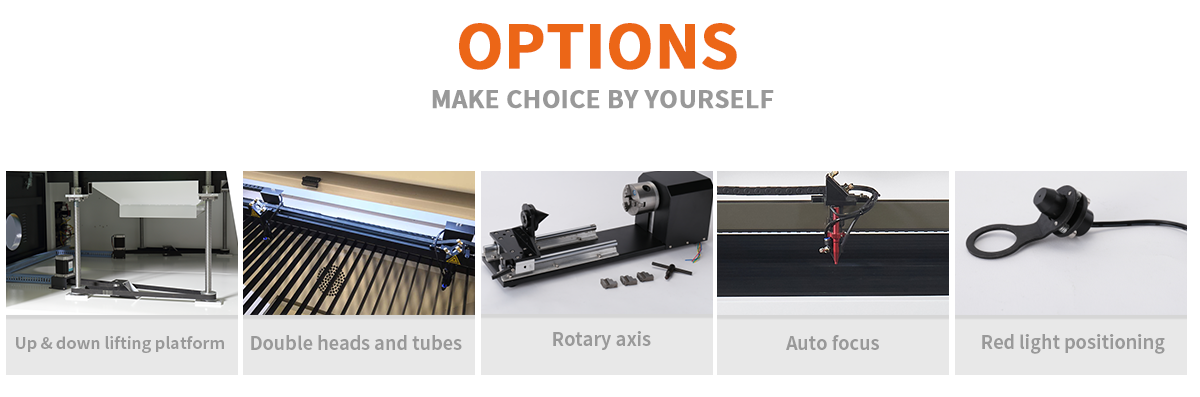

To meet your different cutting and engraving demands, we have some options for your choice to improve your machine.

1390S_05

Technical Parameters

Engraving / Working Area1300x900mm
Laser Source

Sealed CO2 gas filled glass tube,standard 40w with stringintly tested.

Average lifespan is 2000-4000 working hours.

Electrical RequirementsStandard 220v AC 50Hz Single Phase, customized based on your local voltage is available
Compatible SoftwareCORTLDRAW、PHOTOSHOP、AUTOCAD,Compatible with Windows, Mac, and Linux
Motorized TableStandard solid metal blade knife blade bed, or removable honeycomb. Both are available.
Laser HeadsProfessional adjustment special head
Exclusive transmissionHigh-precision screw moddules transmission
Advanced fireproofFireproof protection system
Motion ControlLeadShine Hybrid-Servo Motors with engraving speeds up to 1,000mm/s
BeltsAdvanced wide 3M precision drive belts.
Water ChillerCW5200
Air compressor160w air pump
Ventilation550W Extraction fan
Warning LightVisible red / green light on machine so you know when job is finished
ResolutionFully-flexible and user-controlled from 75 – 1200 dpi
Speed and Power120 IPS (3.05m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode.
Working precisionLocation precision   <0.01mm

Minimum character size    1.5mm x 1.5mm

Typical design software    Adobe Illustrator,  AutoCAD, Corel Draw, 2D design

Preferred file types    .dxf, .plt

Safety deviceOpen cover protection, fire protection, no-water protection, heat alarm system, separately keyed main power switch
Machine SizeAdvanced split structure to save more cost in shipping.

Complete size 2000*1540*1060mm

, package size 2100*1650*1200mm.

Weight500kg
Warranty12 months onsite excluding consumables (laser tube and optics).


Application

Products made by AQ Laser


Below are just a few examples of products that have been made with AQ Laser machines.

We can also make samples according to customer needs.

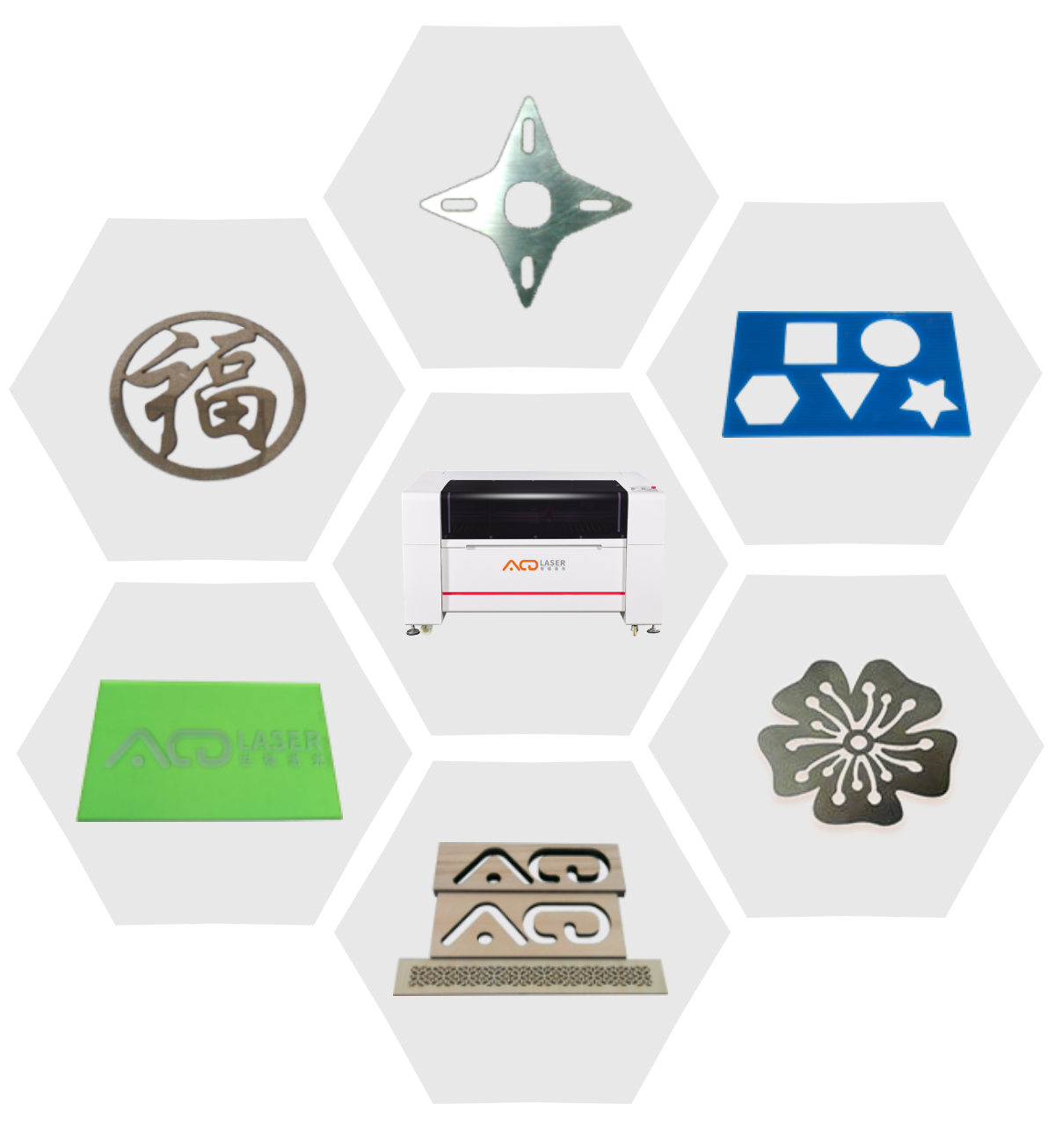

1390S_06


Engrave Cut

Wood

Acrylic

Fabric

Glass

x

x

Coated Metals

x

x

Ceramic

x

x

Cloth

Leather

Marble

x

x

Matte Board

Paper

Mylar

Pressboard

Rubber

Wood Veneer

Fiberglass

x

x

Painted Metals

x

x

Tile

x

x

Plastic

Cork

Stainless Steel



The acrylic CO2 Laser Cutting Machines wood furniture laser engraving machine 1390 9060 1610 For Nonmetal engraver is affordable in different working area. It can meet different needs of users which is used to cut and engrave metal and non metal materials like mdf/acrylic/cloth/paper/aluminum etc. and various processing honeycomb table or auto-feeder table or up down lifting table or knife table is made according to your materials. With the protective cover of the co2 laser cutting machine, the processing production is more environmental friendly.
