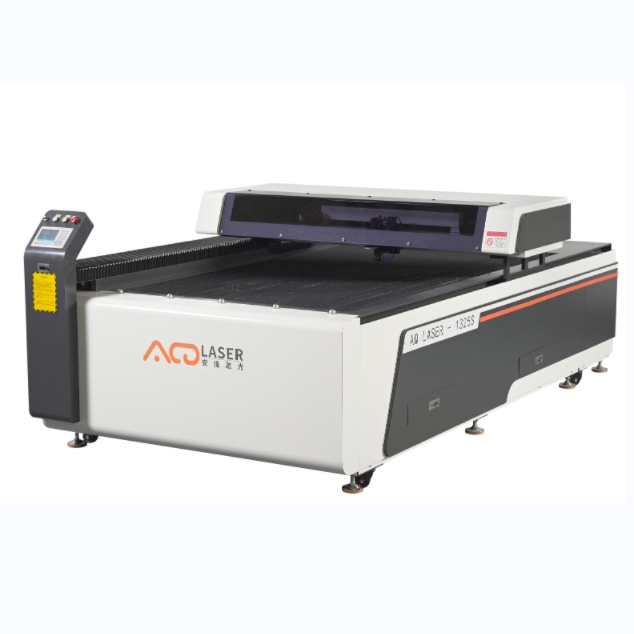

AQ-1325S 300W Ball Screw Laser Cutting Machine

AQ-1325S laser cutting machine is a cutting machine developed for the convenience of customers' high-precision cutting needs. High Precision, High Cost Performance and Wide Application Range. 150W / 300W / 500W non-metal CO2 laser precision cutting solution.
Availability:

PDF Export

sharethis sharing button

Product Description

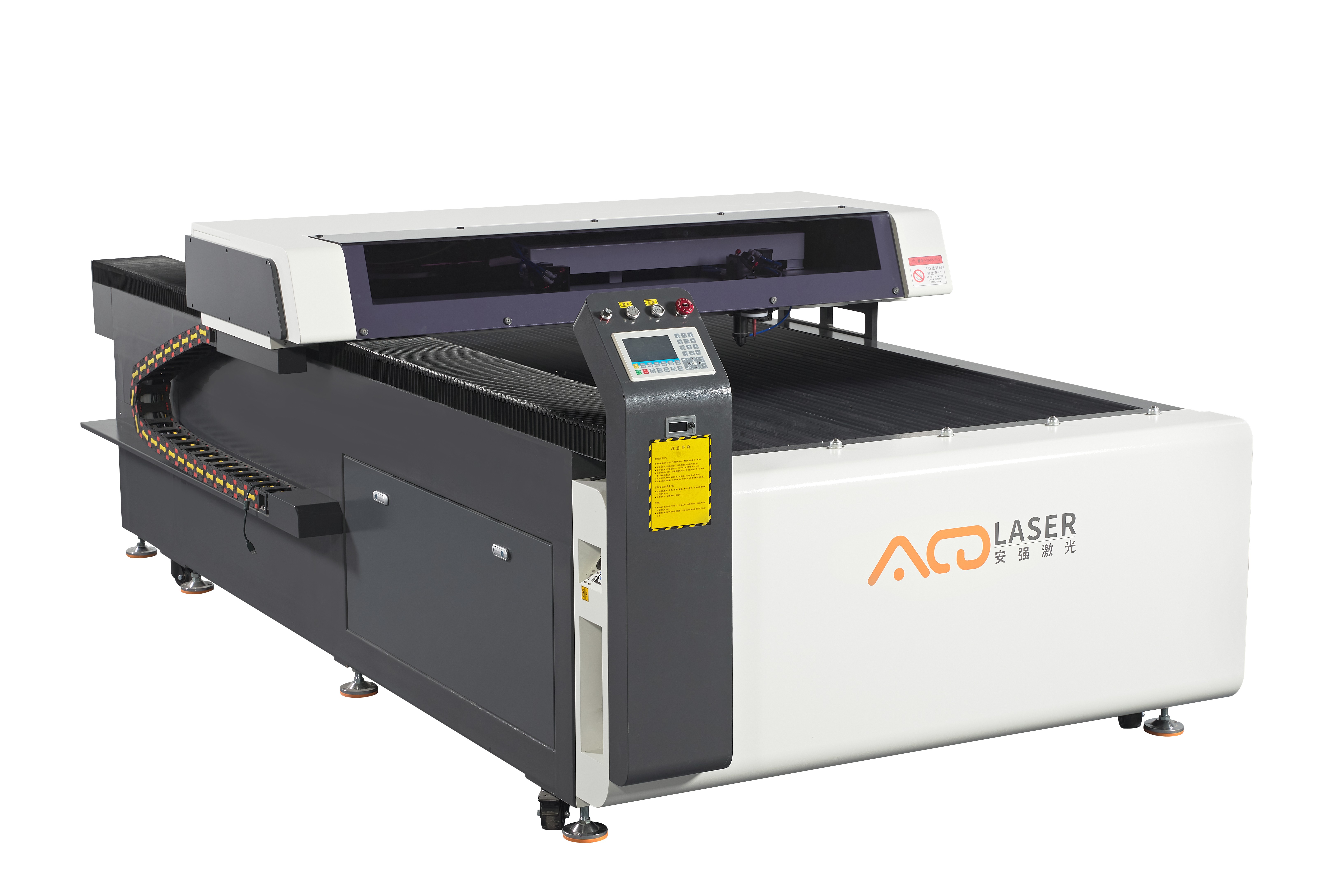

1E8A2125


The 1325S laser engraving and cutting machines from AQ Laser combine our top-of-the-line technology to help every user working in safety with high speed.

AQ-1325S laser cutting machine is a cutting machine developed for the convenience of customers' high-precision cutting needs.

◆Professional design concept, reasonable structure, beautiful appearance, reinforced bed, the overall structure is welded with 100mm square tube, and undergoes vibration aging and natural aging treatment.

◆ The profile cast by the high-precision mold has a high strength, high stability mechanical structure, stable numerical control movement, high speed, high precision, no adjustment for long-term operation, and the cutting precision remains unchanged.

◆It adopts constant laser path design, with unique structure, small light path deviation, high stability and convenient adjustment. Optical fittings use the highest quality imported mirrors and focusing mirrors, with the highest reflectivity and transmittance among similar fittings, smaller light spot and stronger cutting force.


1325S_04

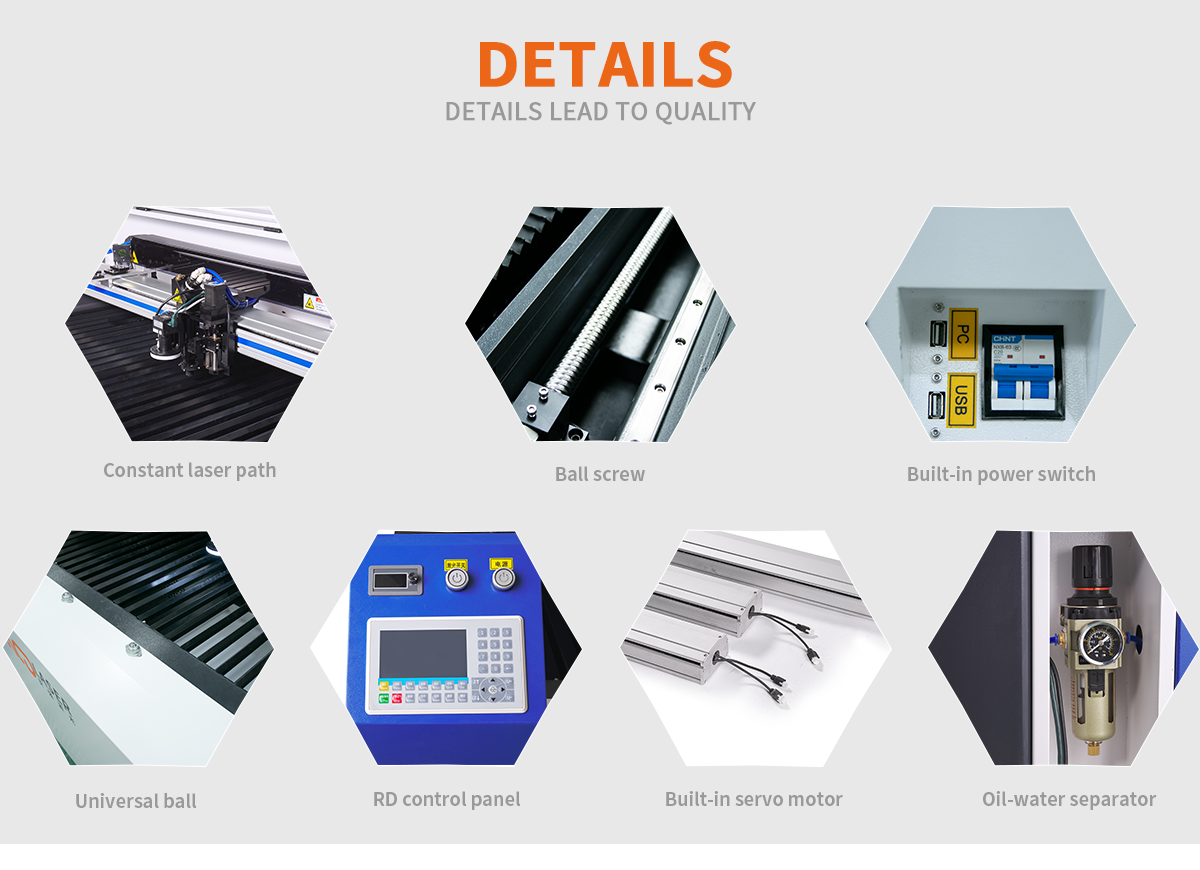

1325S_05

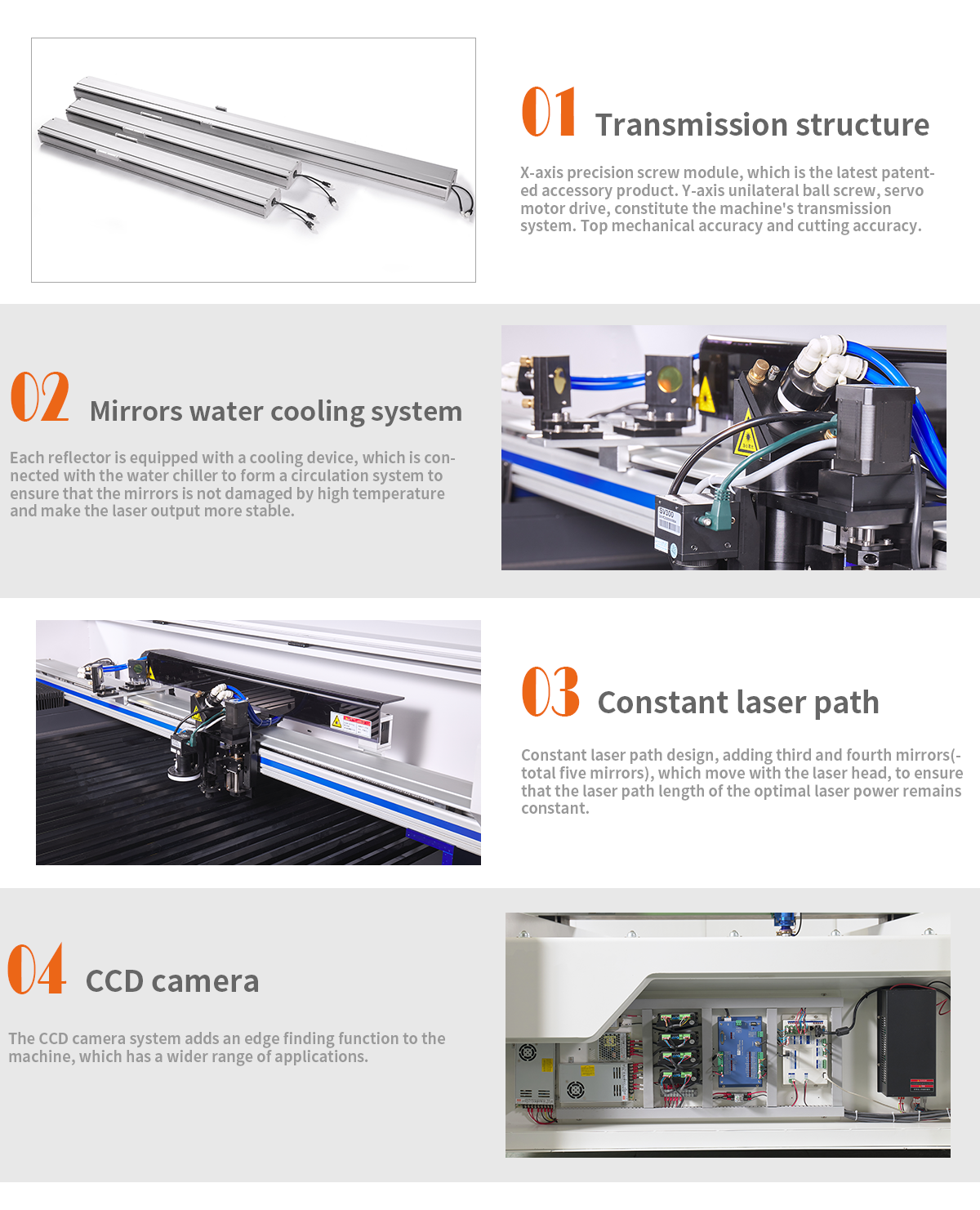

1325S_06

What’s included of machine auxiliary accessories



◆CW6000 industrial water chiller

◆550W extraction fan

◆600W air compressor

◆Toolbox




Technical Parameters

Engraving / Working Area1300x2500mm
Laser Source

Sealed CO2 gas filled glass tube,standard 300w with stringintly tested.

Average lifespan is 2000-4000 working hours.

Electrical RequirementsStandard 220v AC 50Hz Single Phase, customized based on your local voltage is available
Compatible SoftwareCORTLDRAW、PHOTOSHOP、AUTOCAD,Compatible with Windows, Mac, and Linux
Motorized TableStandard solid metal blade knife blade bed, or removable honeycomb. Both are available.
Laser HeadsProfessional adjustment special head
Exclusive transmissionBall Screw transmission
Motion ControlLeadShine Servo Motors with engraving speeds up to 1,000mm/s
Water ChillerCW6000
Air compressor600w air compressor
Ventilation550W Extraction fan
ResolutionFully-flexible and user-controlled from 75 – 1200 dpi
Speed and Power120 IPS (3.05m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode.
Working precisionLocation precision   <0.01mm

Minimum character size    1.5mm x 1.5mm

Typical design software    Adobe Illustrator,  AutoCAD, Corel Draw, 2D design

Preferred file types    .dxf, .plt

Machine SizeAdvanced split structure to save more cost in shipping.

Complete size 3800*2030*1120mm

, package size 4300*2130*1350mm.

Weight1000kg
Warranty12 months onsite excluding consumables (laser tube and optics).


Application

Products made by AQ Laser

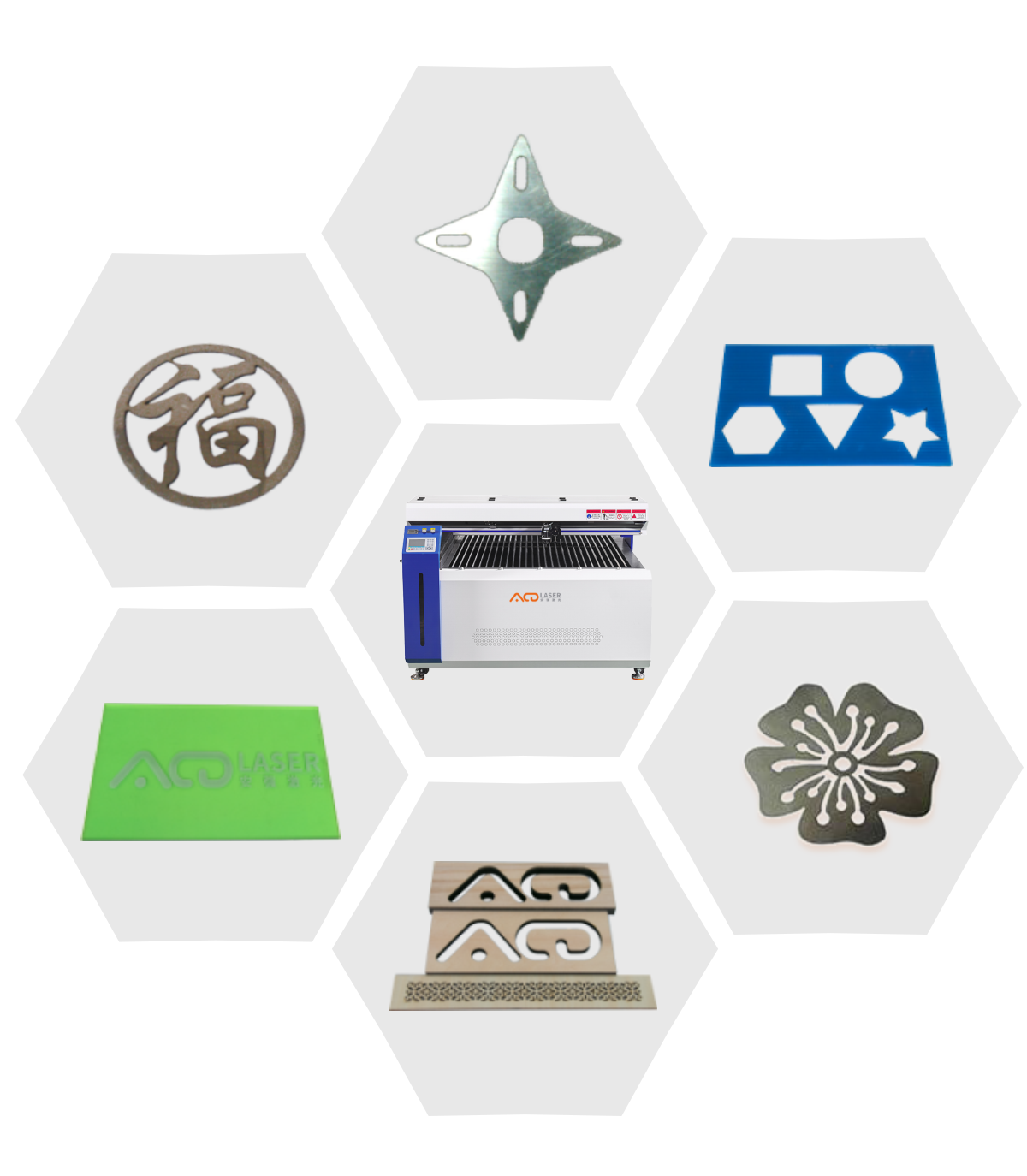

Below are just a few examples of products that have been made with AQ Laser machines.

We can also make samples according to customer needs.

1325S_07


Engrave Cut

Wood

Acrylic

Fabric

Glass

x

x

Coated Metals

x

x

Ceramic

x

x

Cloth

Leather

Marble

x

x

Matte Board

Paper

Mylar

Pressboard

Rubber

Wood Veneer

Fiberglass

x

x

Painted Metals

x

x

Tile

x

x

Plastic

Cork

Stainless Steel



The acrylic CO2 Laser Cutting Machines wood furniture laser engraving machine 1390 9060 1610 For Nonmetal engraver is affordable in different working area. It can meet different needs of users which is used to cut and engrave metal and non metal materials like mdf/acrylic/cloth/paper/aluminum etc. and various processing honeycomb table or auto-feeder table or up down lifting table or knife table is made according to your materials. With the protective cover of the co2 laser cutting machine, the processing production is more environmental friendly.
