Product Description

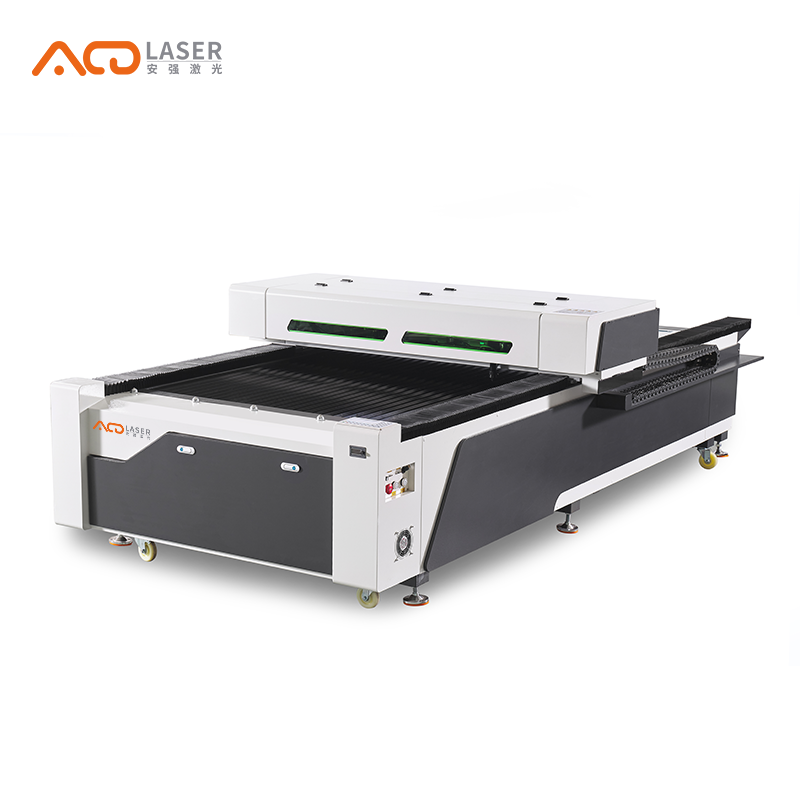

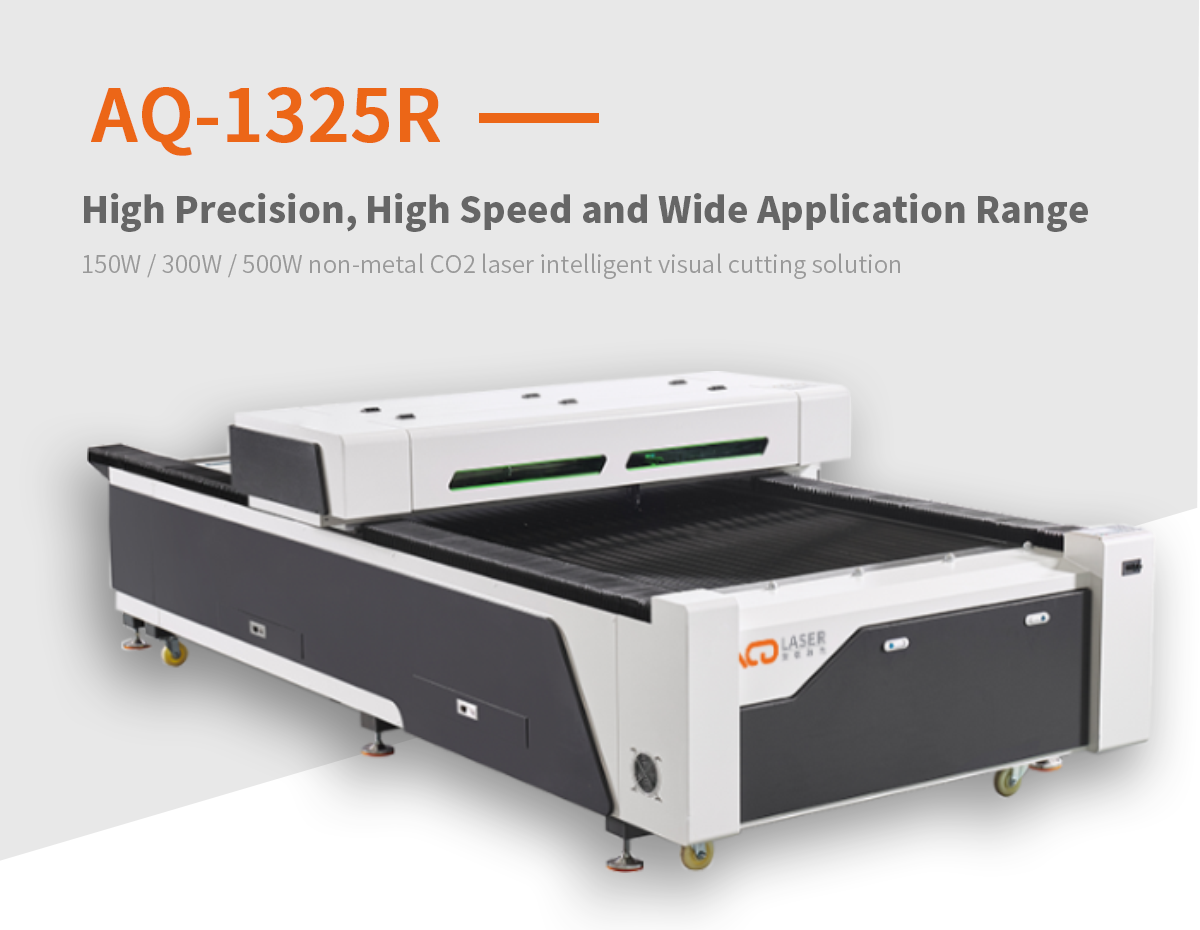

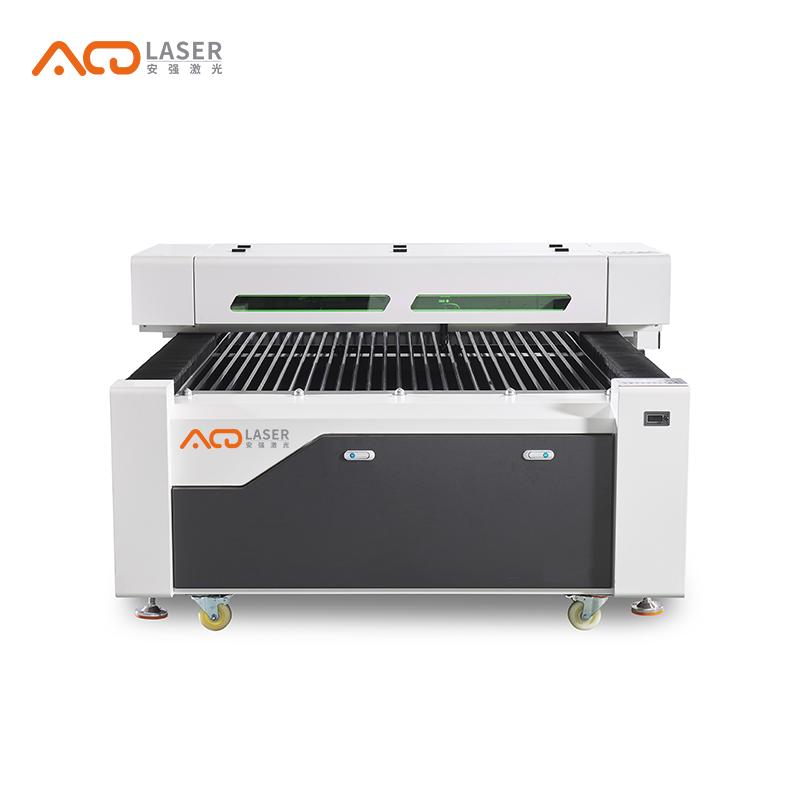

The 1325R laser engraving and cutting machines from AQ Laser combine our top-of-the-line technology to help every user working in safety with high speed.

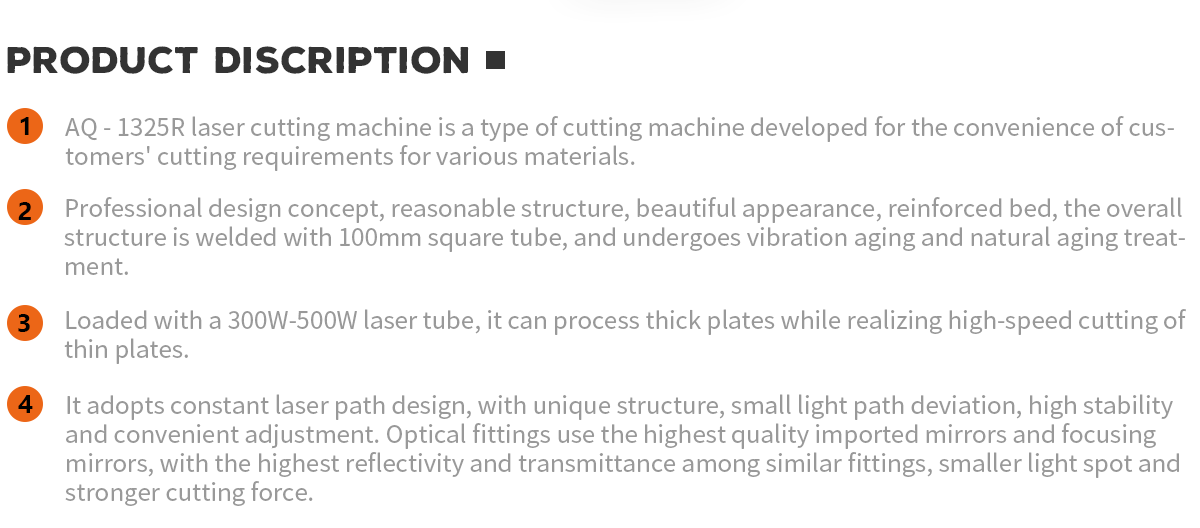

AQ - 1325R laser cutting machine is a type of cutting machine developed for the convenience of customers' cutting requirements for various materials.
◆Professional design concept, reasonable structure, beautiful appearance, reinforced bed, the overall structure is welded with 100mm square tube, and undergoes vibration aging and natural aging treatment.
◆Loaded with a 300W-500W laser tube, it can process thick plates while realizing high-speed cutting of thin plates.

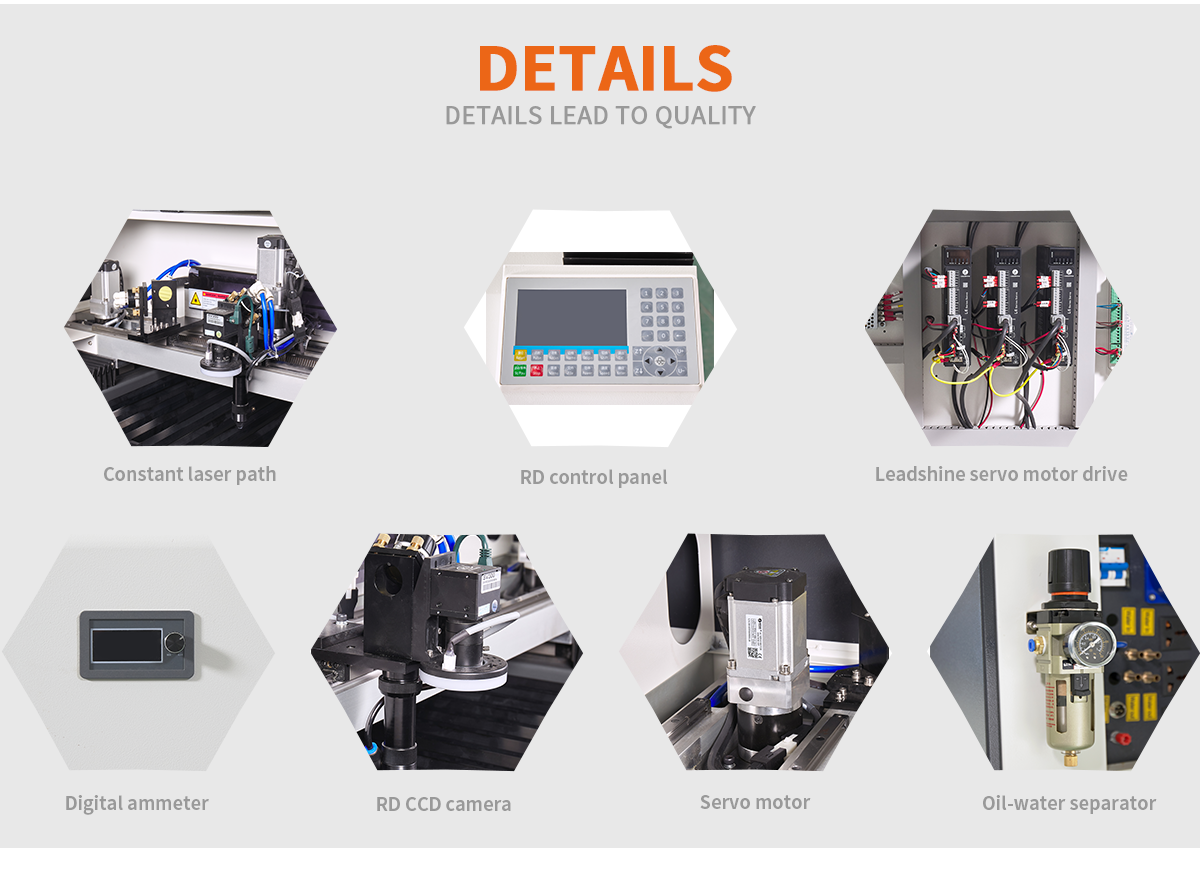

◆It adopts constant laser path design, with unique structure, small light path deviation, high stability and convenient adjustment. Optical fittings use the highest quality imported mirrors and focusing mirrors, with the highest reflectivity and transmittance among similar fittings, smaller light spot and stronger cutting force.
◆CCD camera system, patrol and positioning, powerful.
What’s included of machine auxiliary accessories
◆CW6000 industrial water chiller
◆550W extraction fan
◆600W air compressor
◆Toolbox
Technical Parameters
| Engraving / Working Area | 1300x2500mm |
| Laser Source | Sealed CO2 gas filled glass tube,standard 300w with stringintly tested. Average lifespan is 2000-4000 working hours. |
| Electrical Requirements | Standard 220v AC 50Hz Single Phase, customized based on your local voltage is available |
| Compatible Software | CORTLDRAW、PHOTOSHOP、AUTOCAD，Compatible with Windows, Mac, and Linux |
| Motorized Table | Standard solid metal blade knife blade bed, or removable honeycomb. Both are available. |
| Laser Heads | Professional adjustment special head |
| Exclusive transmission | Rack transmission |
| Motion Control | LeadShine Servo Motors with engraving speeds up to 1,000mm/s |
| Water Chiller | CW6000 |
| Air compressor | 600w air compressor |
| Ventilation | 550W Extraction fan |
| Resolution | Fully-flexible and user-controlled from 75 – 1200 dpi |
| Speed and Power | 120 IPS (3.05m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode. |
| Working precision | Location precision <0.01mm Minimum character size 1.5mm x 1.5mm Typical design software Adobe Illustrator, AutoCAD, Corel Draw, 2D design Preferred file types .dxf, .plt |
| Machine Size | Advanced split structure to save more cost in shipping. Complete size 3800*2030*1120mm , package size 4300*2130*1250mm. |
| Weight | 800kg |
| Warranty | 12 months onsite excluding consumables (laser tube and optics). |
Application
Products made by AQ Laser
Below are just a few examples of products that have been made with AQ Laser machines.
We can also make samples according to customer needs.
The acrylic CO2 Laser Cutting Machines wood furniture laser engraving machine 1390 9060 1610 For Nonmetal engraver is affordable in different working area. It can meet different needs of users which is used to cut and engrave metal and non metal materials like mdf/acrylic/cloth/paper/aluminum etc. and various processing honeycomb table or auto-feeder table or up down lifting table or knife table is made according to your materials. With the protective cover of the co2 laser cutting machine, the processing production is more environmental friendly.
Delivery Process
About AQ Laser
AQ Laser offer a rapidly increasing range of designed and manufactured laser machines to suit your needs, Whether you're an individual, startup or a large corporation, we offer affordable laser machines to suit all budgets. Laser systems are becoming a vital part of a modern workshop or production facility. Start your journey into the world of co2 laser machines by working with the right company. Please select from the below categories for more information, or contact our friendly sales team to speak to us for advice on the best machine for you.
