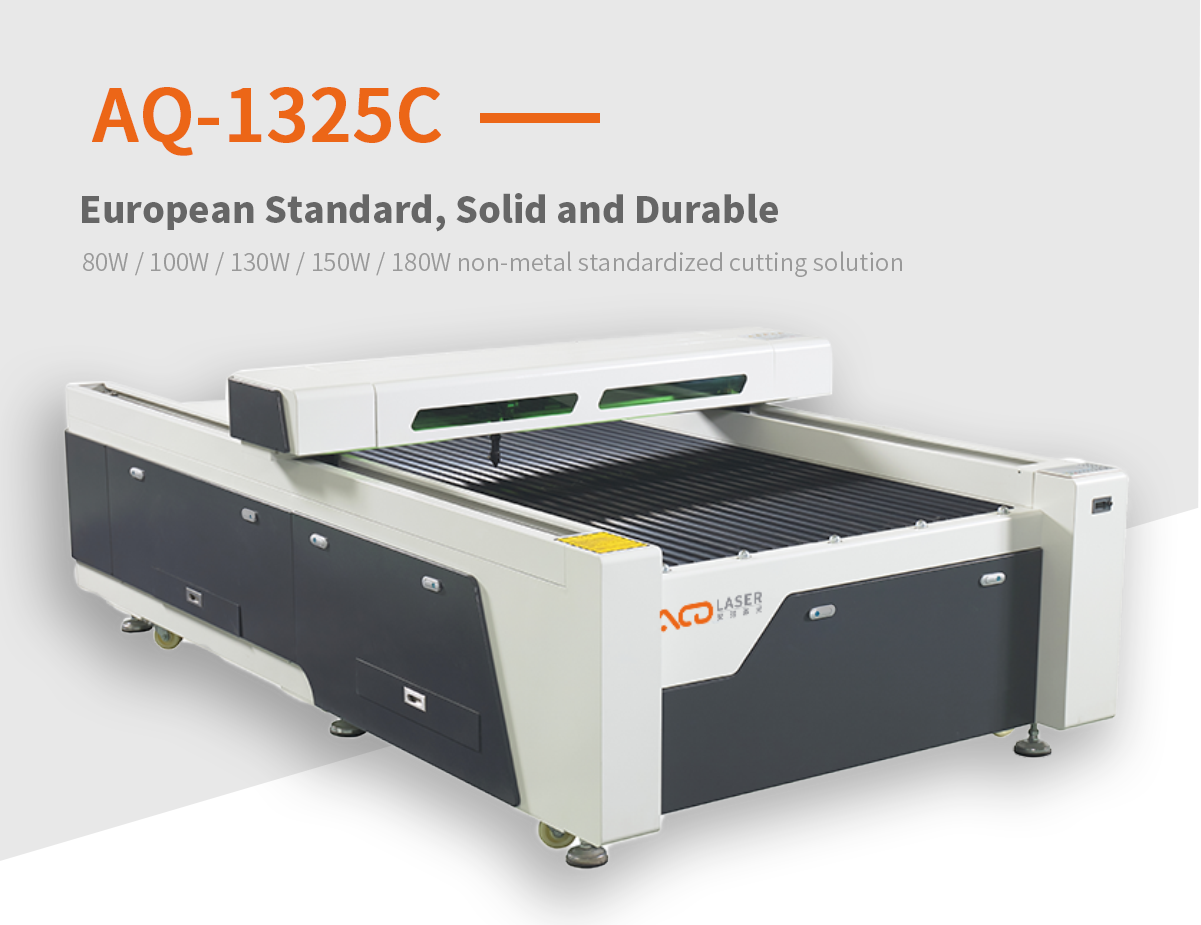

AQ-1325C laser cutting&engraving machine

The AQ-1325C laser engraving and cutting machine is designed and produced according to European quality standards, which meets the needs of customers for cutting the entire sheet. European Standard, Solid and Durable. 80W / 100W / 130W / 150W / 180W non-metal standardized cutting solution.
Availability:

PDF Export

sharethis sharing button

Product Description

1325C_02


The 1325C laser engraving and cutting machines from AQ Laser combine our top-of-the-line technology to help every user working in safety with high speed. Energy saving, high efficiency, low consumption and low maintenance cost.


1325C_05

1325C_07

1325C_08

What’s included of machine auxiliary accessories



◆CW5000 industrial water chiller

◆550W extraction fan

◆150W air pump

◆Toolbox




Technical Parameters

Engraving / Working Area1300x2500mm
Laser Source

Sealed CO2 gas filled glass tube,standard 40w with stringintly tested.

Average lifespan is 2000-4000 working hours.

Electrical RequirementsStandard 220v AC 50Hz Single Phase, customized based on your local voltage is available
Compatible SoftwareCORTLDRAW、PHOTOSHOP、AUTOCAD,Compatible with Windows, Mac, and Linux
Motorized TableStandard solid metal blade knife blade bed, or removable honeycomb. Both are available.
Laser HeadsProfessional adjustment special head
Exclusive transmission40mm belt transmission
Motion ControlLeadShine Stepper Motors with engraving speeds up to 1,000mm/s
BeltsAdvanced wide 3M precision drive belts.
Water ChillerCW5000
Air compressor160w air acompressor
Ventilation550W Extraction fan
Warning LightVisible red / green light on machine so you know when job is finished
ResolutionFully-flexible and user-controlled from 75 – 1200 dpi
Speed and Power120 IPS (3.05m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode.
Working precisionLocation precision   <0.01mm

Minimum character size    1.5mm x 1.5mm

Typical design software    Adobe Illustrator,  AutoCAD, Corel Draw, 2D design

Preferred file types    .dxf, .plt

Safety deviceOpen cover protection, fire protection, no-water protection, heat alarm system, separately keyed main power switch
Machine SizeAdvanced split structure to save more cost in shipping.

Complete size 3240*1930*1060mm

, package size 3400*2030*1250mm.

Weight650kg
Warranty12 months onsite excluding consumables (laser tube and optics).


Application

Products made by AQ Laser


Below are just a few examples of products that have been made with AQ Laser machines.

We can also make samples according to customer needs.

1325C_09


Engrave Cut

Wood

Acrylic

Fabric

Glass

x

x

Coated Metals

x

x

Ceramic

x

x

Cloth

Leather

Marble

x

x

Matte Board

Paper

Mylar

Pressboard

Rubber

Wood Veneer

Fiberglass

x

x

Painted Metals

x

x

Tile

x

x

Plastic

Cork

Stainless Steel



The acrylic CO2 Laser Cutting Machines wood furniture laser engraving machine 1390 9060 1610 For Nonmetal engraver is affordable in different working area. It can meet different needs of users which is used to cut and engrave metal and non metal materials like mdf/acrylic/cloth/paper/aluminum etc. and various processing honeycomb table or auto-feeder table or up down lifting table or knife table is made according to your materials. With the protective cover of the co2 laser cutting machine, the processing production is more environmental friendly.

Delivery Process

PACKING_02

About AQ Laser

AQ Laser offer a rapidly increasing range of designed and manufactured laser machines to suit your needs, Whether you're an individual, startup or a large corporation, we offer affordable laser machines to suit all budgets. Laser systems are becoming a vital part of a modern workshop or production facility. Start your journey into the world of co2 laser machines by working with the right company. Please select from the below categories for more information, or contact our friendly sales team to speak to us for advice on the best machine for you.
