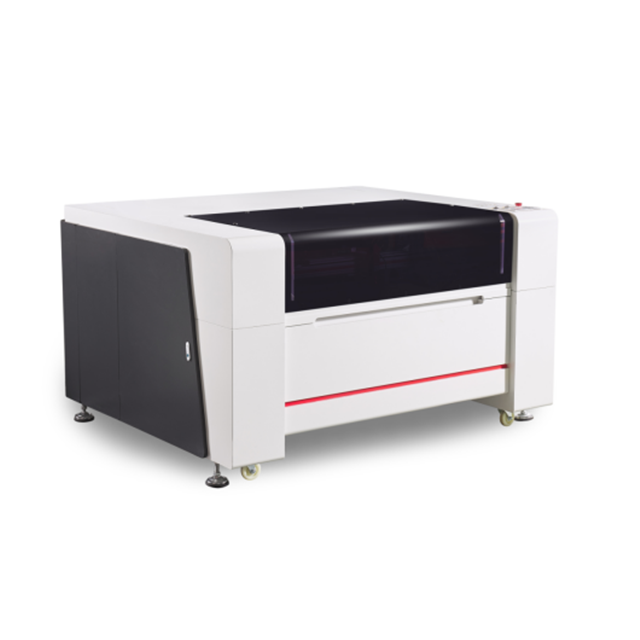

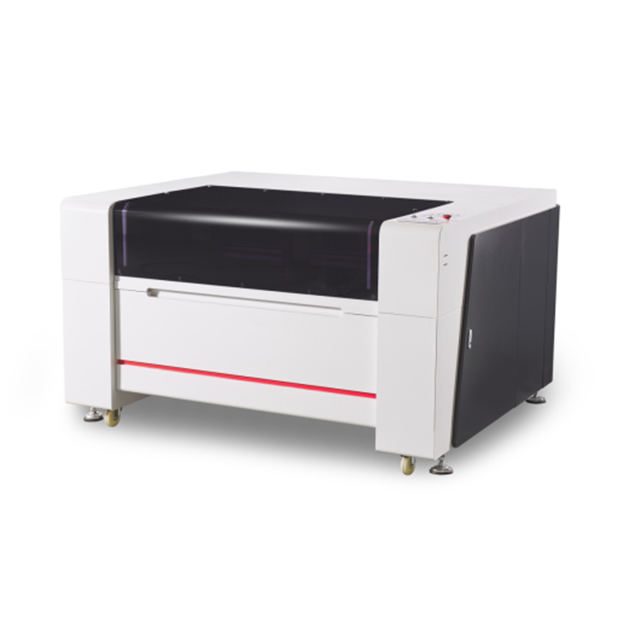

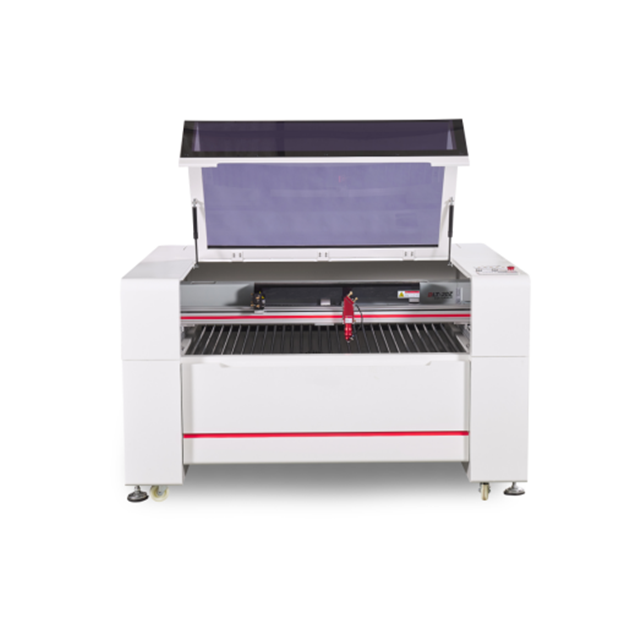

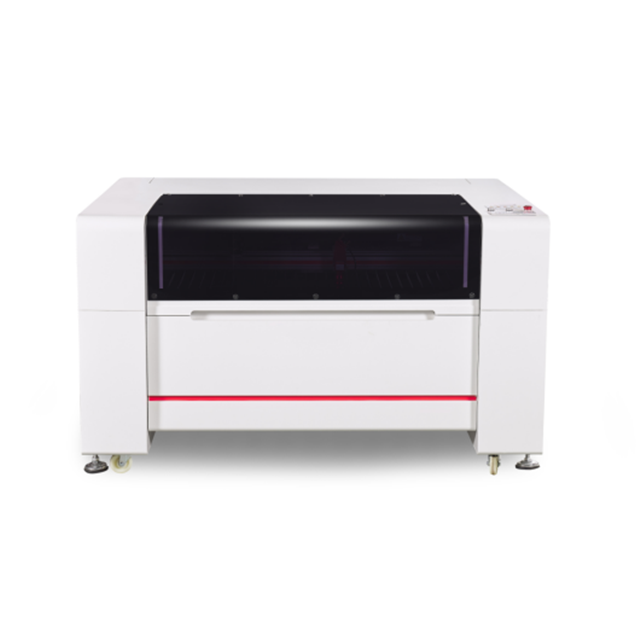

1390S
Product Description
Model： | 1390S |
Laser type | Sealed CO2 laser tube |
Machine size | 2000*1680*1160mm |
N.Weight | 480KGS |
Laser power | 100W/130W/150W/240W |
Transmission mode | Servo + ball screw |
Engraving speed | 1-60,000mm/min |
Position accuracy | ≤±0.01mm |
Min character | Chinese character 1.5mm, English 1mm |
XY Working area | 1300mm*900mm |
Cooling mode | Water cooling and protection system |
Working table | Knife blade or honeycomb |
Working environment | Temperature:0—45℃ Humidity:5%—95%(No condensate water) |
Advantage
1. X, Y-axis precision screw module, servo motor drive, constitute the machine's transmission system. Precision screw module is the latest patented transmission structure.
2. Constant optical path design, add third and fourth mirrors (total five mirrors) and move with the laser head to keep the optimal output optical path length constant.
3. The X-axis reinforced beam can be installed with a 240W combined beam laser tube.

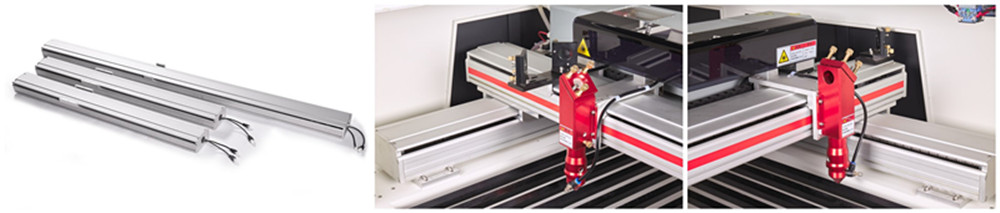

Precision screw module Constant optical path X-axis reinforced beam
Product Characteristics
1390S laser cutting machine is a type of machine developed for the convenience of customers' cutting requirements for various materials.
◆ Specialized design concept, tailored to users in different industries, reasonable structure, beautiful appearance and practicality.
◆ The profile cast by the high-precision mold has a high strength, high stability mechanical structure, stable numerical control movement, high speed, high precision, no adjustment for long-term operation, and the engraving precision remains unchanged. The design concept of front-to-back penetration of the machine body can facilitate front-to-back feeding, and is suitable for processing unlimited length workpieces.
◆ Stable and perfect design concept, advanced industrial cooling system and automatic protection function without water alarm have improved the stability and safety of continuous work. Perfect dustproof and anti-pollution design greatly improves the stability of the whole machine.
◆ It adopts flight light path design, with unique structure, small light path deviation, high stability and convenient adjustment. Optical fittings use the highest quality imported mirrors and focusing mirrors, with the highest reflectivity and transmittance among similar fittings, thinner facula and stronger cutting force.
Application Show
Packing
