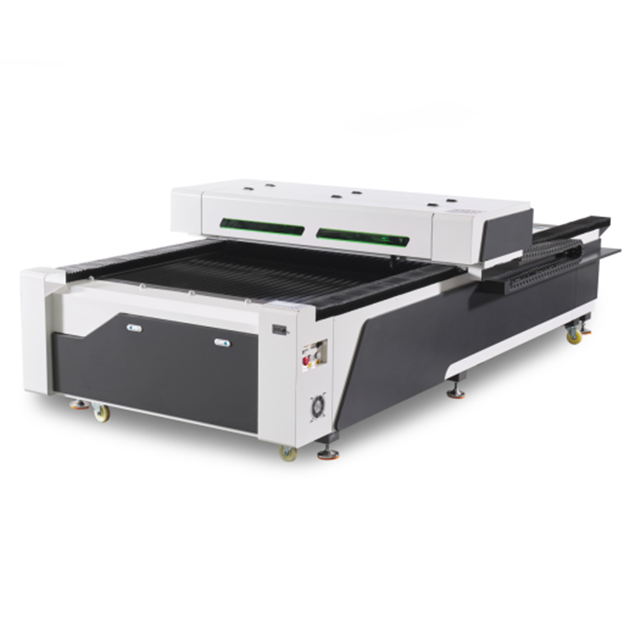

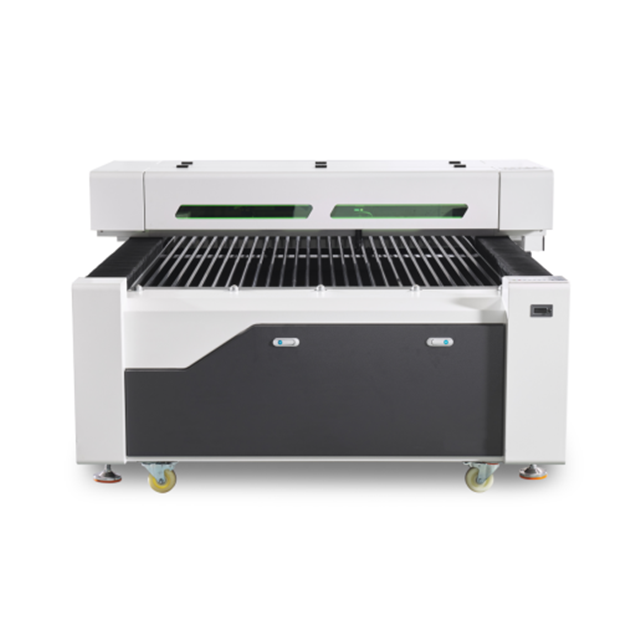

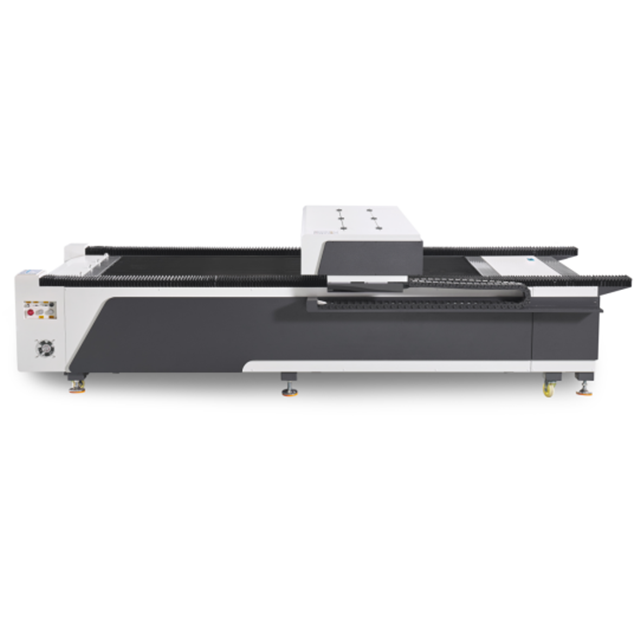

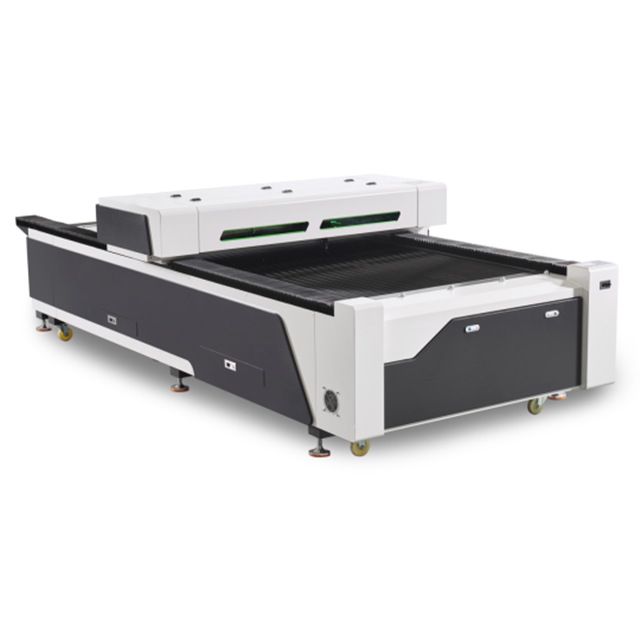

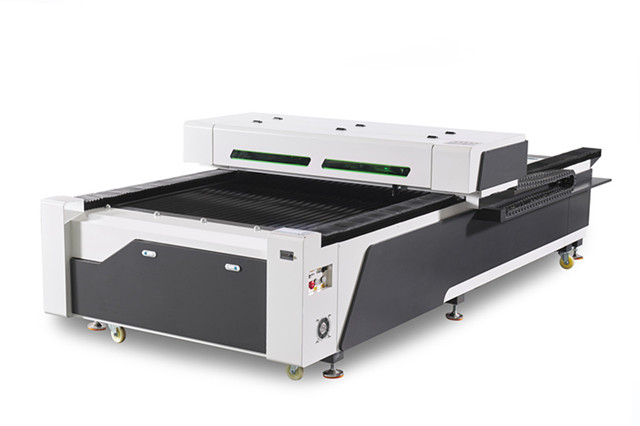

1325R
Product Description
Model： | 1325R-CCD |
Laser type | Sealed CO2 laser tube |
Machine size | 3800*1960*1150mm |
N.Weight | 800KGS |
Laser power | 100W/130W/150W/300W/500W |
Transmission mode | Servo + rack |
Max idling speed | 600mm/s |
Position accuracy | ≤±0.05mm |
Positioning way | CCD edge positioning |
XY Working area | 1300mm*2500mm |
Cooling mode | Water cooling and protection system |
Operating voltage | AC110-220V±10%，50-60HZ |
Working table | Knife blade or honeycomb |
Working environment | temperature:0—45℃ humidity:5%—95%(No condensate water) |
Advantage
1. Reinforced bed, the overall structure is welded with 100mm square tube (thickness 5.5mm), and undergoes vibration aging and natural aging treatment.
2. X-axis rack and double guide rails, Y-axis double-sided rack and bilateral drive servo motor combined with precision reducer, greatly reduce the probability of rack wear and deformation, noise-free operation at 500mm/s idling speed.
3. Constant optical path, add third and fourth mirrors (total five mirrors) and move with the laser head to keep the optimal output optical path length constant.
4. The CCD camera system adds an edge finding function to the machine, which has a wider range of applications.

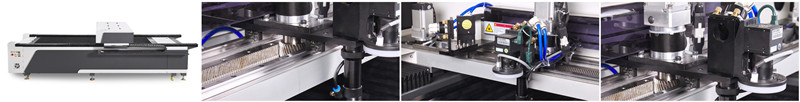

Reinforced bed X-axis Constant optical path CCD camera system
Product Characteristics
1325R laser cutting machine is a type of cutting machine developed for the convenience of customers' engraving requirements for various materials.
◆ Specialized design concept, tailored to users in different industries, reasonable structure, beautiful appearance and practicality.
◆ The profile cast by the high-precision mold has a high strength, high stability mechanical structure, stable numerical control movement, high speed, high precision, no adjustment for long-term operation, and the engraving precision remains unchanged. The design concept of front-to-back penetration of the machine body can facilitate front-to-back feeding, and is suitable for processing unlimited length workpieces.
◆ Stable and perfect design concept, advanced industrial cooling system and automatic protection function without water alarm have improved the stability and safety of continuous work. Perfect dustproof and anti-pollution design greatly improves the stability of the whole machine.
◆ It adopts flight light path design, with unique structure, small light path deviation, high stability and convenient adjustment. Optical fittings use the highest quality imported mirrors and focusing mirrors, with the highest reflectivity and transmittance among similar fittings, thinner facula and stronger cutting force.
Application Show
Packing
