Technical Parameters
The laser engraving and cutting machines from Kernel Laser combine our top-of-the-line technology to help every user working in safety with high speed.

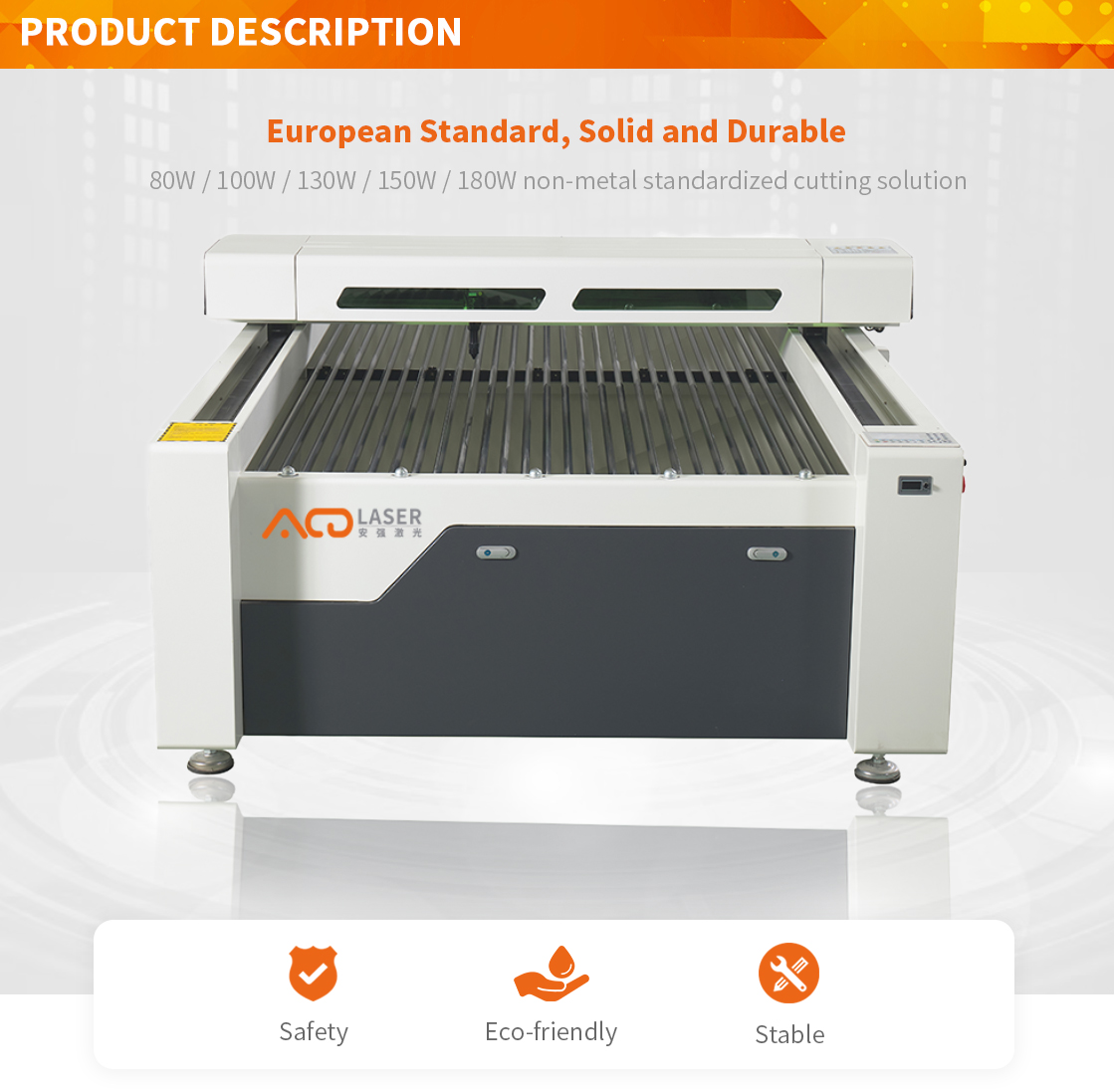

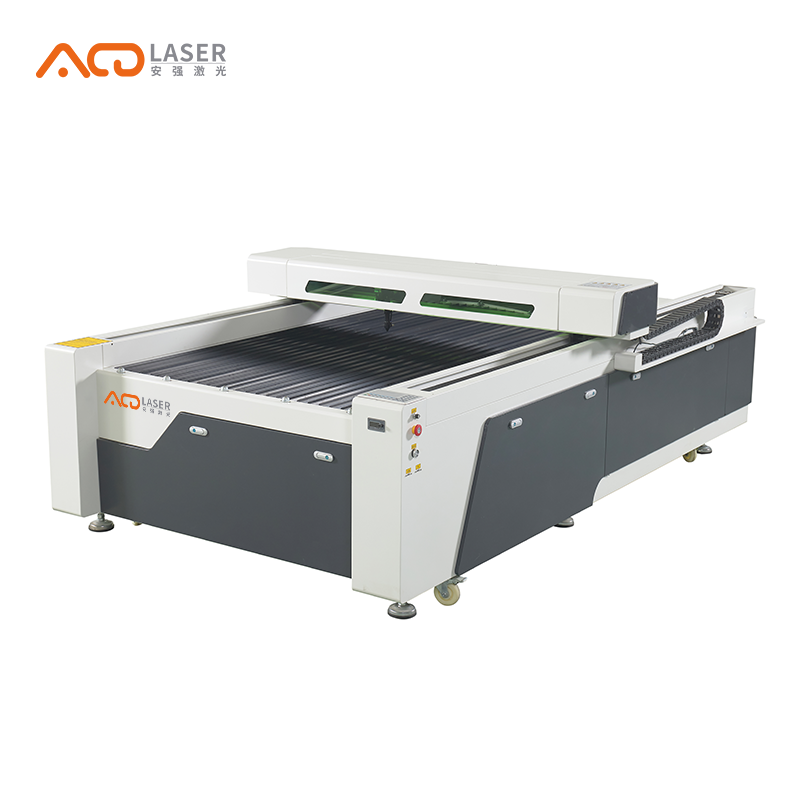

Kernel-1325 series laser engraving machine is a type of engraving machine developed for the convenience of customers' engraving requirements for various materials.
◆ Specialized design concept, tailored to users in different industries, reasonable structure, beautiful appearance and practicality.
◆ The profile cast by the high-precision mold has a high strength, high stability mechanical structure, stable numerical control movement, high speed, high precision, no adjustment for long-term operation, and the engraving precision remains unchanged. The design concept of front-to-back penetration of the machine body can facilitate front-to-back feeding, and is suitable for processing unlimited length workpieces.
◆ Stable and perfect design concept, advanced industrial cooling system and automatic protection function without water alarm have improved the stability and safety of continuous work. Perfect dustproof and anti-pollution design greatly improves the stability of the whole machine.
◆ It adopts flight light path design, with unique structure, small light path deviation, high stability and convenient adjustment. Optical fittings use the highest quality imported mirrors and focusing mirrors, with the highest reflectivity and transmittance among similar fittings, thinner facula and stronger cutting force.
With three features of Kernel Laser, you can get a 1325 laser cutting and engraving machine.
◆Adopt a constant optical path design, 5 mirrors, follow-up operation, so that the laser maintains a constant power output, large-format plates are evenly cut, and the effect is excellent.
◆The gantry uses high-strength profiles, which are not easy to deform and have a long service life.
◆The Y-axis adopts a 40mm belt, which has stronger traction and uniform force, which makes the gantry vibration smaller and cutting more stable.

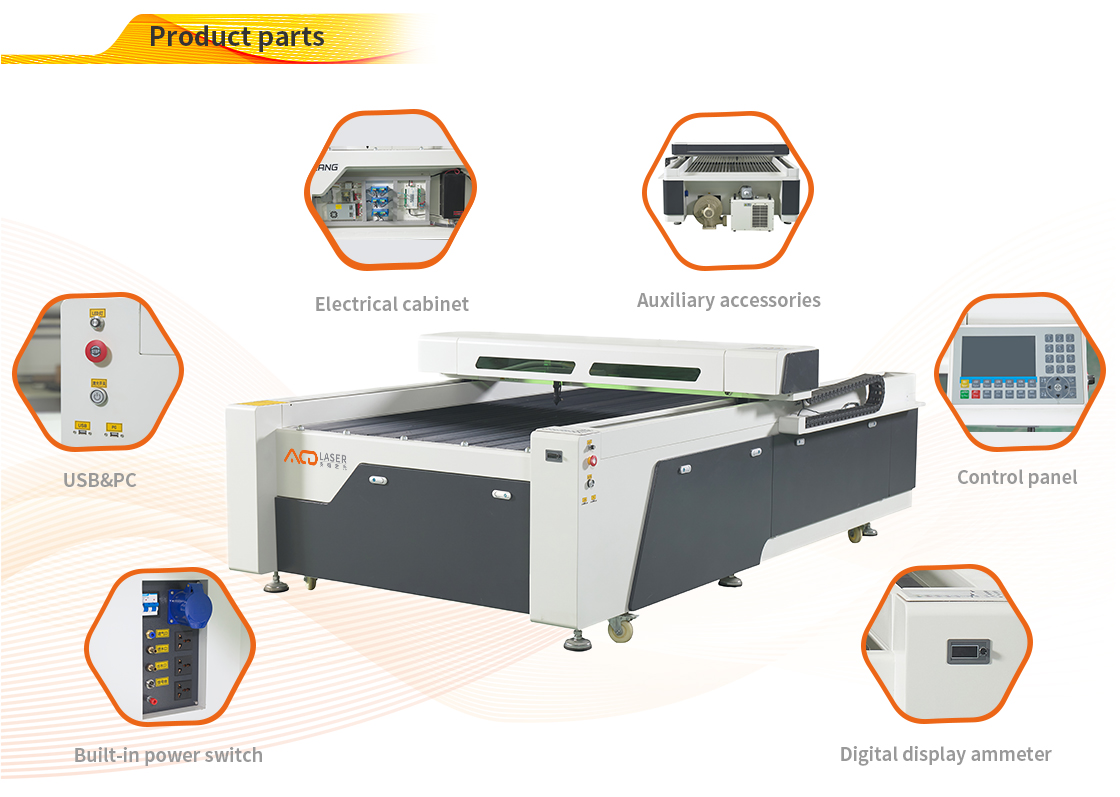

◆With high-strength body, high-quality electrical components, and stylish design, the machine has excellent quality from the inside out.
What’s included
◆1325 complete machine
◆CW5200 industrial water chiller
◆550W Extraction fan
◆Free standing air compressor
◆Ruida controller as standard
Technical Specification
Engraving / Working Area | 1300x2500mm |
Laser Source | Sealed CO2 gas filled glass tube,standard 100w,130w,150w with stringintly tested. Average lifespan is 2000-4000 working hours. |
Electrical Requirements | Standard 220v AC 50Hz Single Phase, customized based on your local voltage is available |
Compatible Software | CORTLDRAW、PHOTOSHOP、AUTOCAD，Compatible with Windows, Mac, and Linux |
Motorized Table | Standard solid metal blade knife blade bed, or removable honeycomb. Both are available. |
Laser Heads | Professional adjustment special head |
Exclusive transmission | High-precision sliding block transmission |
Advanced fireproof | Fireproof protection system |
Motion Control | LeadShine Hybrid-Servo Motors with engraving speeds up to 1,000mm/s |
Belts | Advanced wide 3M precision drive belts. |
Water Chiller | CW5000 (100w version) or CW5200 (130w version) |
Air compressor | 160w air assist pump |
Ventilation | 550W Extraction fan |
Warning Light | Visible red / green light on machine so you know when job is finished |
Resolution | Fully-flexible and user-controlled from 75 – 1200 dpi |
| Speed and Power | 120 IPS (3.05m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode. |
| Working precision | Location precision <0.01mm Minimum character size 1.5mm x 1.5mm Typical design software Adobe Illustrator, AutoCAD, Corel Draw, 2D design Preferred file types .dxf, .plt |
Safety device | Open cover protection, fire protection, no-water protection, heat alarm system, separately keyed main power switch |
| Machine Size | Advanced split structure to save more cost in shipping. Complete size 2X3.16X1.2m, package size 2.2X3.3X1.38m. |
| Weight | 1000kg |
| Warranty | 12 months onsite excluding consumables (laser tube and optics). |
To meet your different cutting and engraving demands, we have some options for your choice to improve your machine.
Accessories for Laser Machines

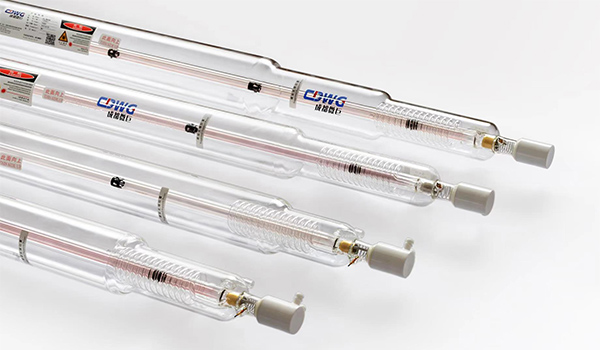

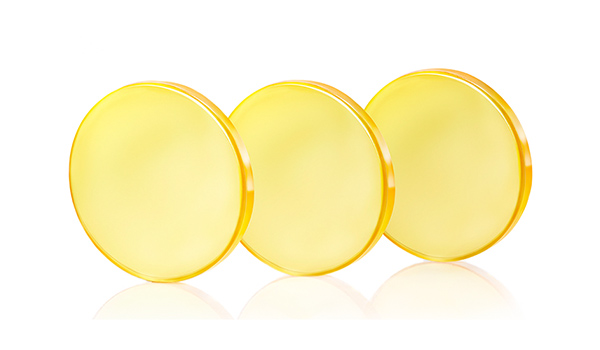

 Laser Tube |  Mirrors Lens |
Application
Products made by Kernel Laser
Below are just a few examples of products that have been made with Kernel Laser machines.
Engrave | Cut | |
Wood | √ | √ |
Acrylic | √ | √ |
Fabric | √ | √ |
Glass | x | x |
Coated Metals | x | x |
Ceramic | x | x |
Cloth | √ | √ |
Leather | √ | √ |
Marble | x | x |
Matte Board | √ | √ |
Paper | √ | √ |
Mylar | √ | √ |
Pressboard | √ | √ |
Rubber | √ | √ |
Wood Veneer | √ | √ |
Fiberglass | x | x |
Painted Metals | x | x |
Tile | x | x |
Plastic | √ | √ |
Cork | √ | √ |
Stainless Steel | √ | √ |
The CO2 laser cutting machine is affordable in different working area. It can meet different needs of users which is used to cut and engrave metal and non metal materials like mdf/acrylic/cloth/paper/aluminum etc. and various processing honeycomb table or auto-feeder table or up down lifting table or knife table is made according to your materials. With the protective cover of the co2 laser cutting machine, the processing production is more environmental friendly.
